Other Equipment

Manufacturer KASTO Maschinenbau GmbH & Co. KG
Model Kasto psb 2
Year of Production 2018
Brief Description:

The hacksaw at utg is a full hydraulic production hacksaw, which uses universal hydraulics for exclusive or alternate cutting of thin- and thick-walled profiles and solid materials, without a saw blade change with the uniform tooth pitch.

Technical Specifications:
Uniform Tooth Pitch 3 ... 4 teeth/in
Pre-Stressed Bow Guide
Closed Oil Hydraulics
Triple Pivot Bearing
Separate Coolant System
Continuously Adjustable, Hydraulic Cutting Pressure Load
Equipped as Standard with Infinitely Variable Miter Device
Longitudinal Guide with Ground and Hardened Guide Rails
Automatic Limit Stop
Push Button Control for On, Off, and Up Movement of the Saw Bow
Power 2.6 kW
Cutting Speed 11/14/18/22/28/36 m/min
Cutting range at 45° for round, flat, or square profile 180 mm / 180 mm x 170 mm / 170 mm x 170 mm
Cutting range at 90° for round, flat, or square profile 280 mm / 280 mm x 160 mm / 240 mm x 240 mm
Material Support Height 600 mm
Height of Maximum Position/Lowered 1320 mm / 1000 mm
Dimensions Saw Band (LxWxH) 450 mm x 40 mm x 2 mm
Dimensions (LxBxH) 1500 mm x 650 mm x -
Weight 540 kg

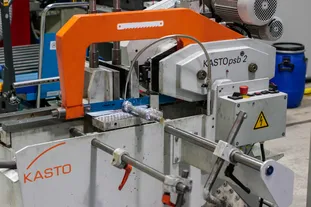

Photo Gallery:
