# New in SG-Lib 2.5

Last change of this page: 2017-07-14
###### VLFLreorder(VL,FL,nvi)- returns VL and FL with reordered vertices
 % VLFLreorder(VL,FL,nvi) - returns VL and FL with reordered vertices% (by Tim Lueth, VLFL-Lib, 2015-SEP-19 as class: AUXILIARY PROCEDURES)% % Auxiliary procedure for reordering (shifting, rotation) of vertices and % a corresponding face list:% VL(nvi,:)=VL;% FL=nvi(FL);% (Status of: 2015-09-19)% % [VL,FL]=VLFLreorder(VL,FL,nvi)% === INPUT PARAMETERS ===% VL: Vertex list [n x 3]% FL: Facet list (mx3)% nvi: new vertex index list (same length as VL) (nx1)% === OUTPUT RESULTS ======% VL: Resulting vertex list [nx3]% FL: Facet list using the new numbers%

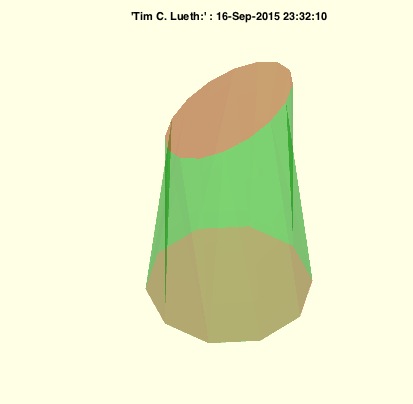

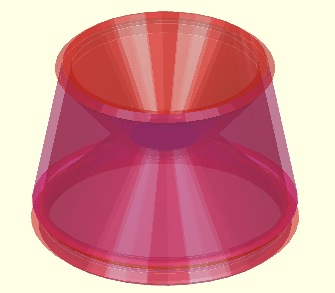

###### SGof2CPLz(CPA,CPB,z,stype,ctype)- returns a solid defined by 2 contours and height
 % SGof2CPLz(CPA,CPB,z,stype,ctype) - returns a solid defined by 2 % contours and height% (by Tim Lueth, VLFL-Lib, 2015-SEP-16 as class: SURFACES)% % The optimal result depends on the expectations of the user. Consider % different options for stype carefully:% "number" of points, i.e. 1:nmax% "length" of contour, i.e. 0:sum(edge length)% "angle" of contour, i.e. 0:sum(abs(edge angle))% "center" of contour, i.e. 0:360 degree% also the starting point ctype ('rot' or 'min');% % Quite optimal procedure to find the walls between two planar contours % without adding new points. The number of faces is na+nb. % The resulting vertex list SG: % SG.VL=[VLaddz(CPA,0);VLaddz(CPB,z)];% SG.FL=[FLA;FLB;FLW];% (Status of: 2015-10-02)% % [SG,FLW,FLA,FLB]=SGof2CPLz([CPA,CPB,z,stype,ctype])% === INPUT PARAMETERS ===% CPA: ONE bottom Contour% CPB: ONE top Contour% z: height of the solid% stype: "number", "length", "angle", "center"; default is "length"% ctype: "rot" or "miny"; default is "rot"% === OUTPUT RESULTS ======% SG: Solid Geoemtry; VL=[CPA;CPB]% FLW: Face list of Wall% FLA: Face list of CPA% FLB: Face list of CPB% % EXAMPLE: % SGof2CPLz(PLcircle(10,8),PLstar(10,12),30)%
###### exp_2015_09_16c(CPA,CPB,z)- EXPERIMENT that solves the problem of conntourwall of 2 independent contours
 % exp_2015_09_16c(CPA,CPB,z) - EXPERIMENT that solves the problem of % conntourwall of 2 independent contours% (by Tim Lueth, VLFL-Lib, 2015-SEP-16 as class: EXPERIMENTS)% % SG=exp_2015_09_16c(CPA,CPB,z)% === INPUT PARAMETERS ===% CPA: Contour Bottom% CPB: Contour Top% z: % === OUTPUT RESULTS ======% SG: Solid Geometry%
###### mod1(n,k)- returns mod function for elements 1:k
 % mod1(n,k) - returns mod fnctn for elements 1:k% (by Tim Lueth, VLFL-Lib, 2015-SEP-16 as class: AUXILIARY PROCEDURES)% % auxiliary fnctn for array manipulation. Instead of return values % between [0..k-1], this fnctn returns [1..k] by a=mod(n-1,k)+1 (Status % of: 2015-09-16)% % See also: modN, mod% % a=mod1(n,k)% === INPUT PARAMETERS ===% n: number% k: divider% === OUTPUT RESULTS ======% a: rest% % EXAMPLE: % mod1(1:6,3)%

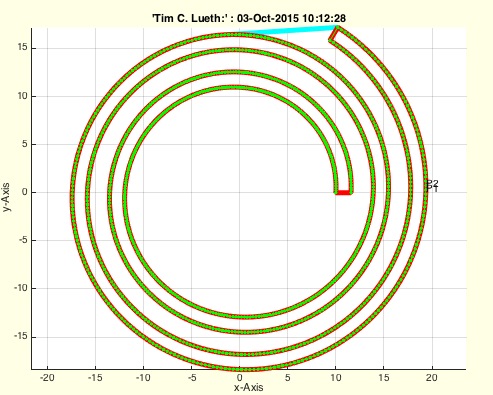

###### CPLsortC(CPL,ctype,CA)- returns a contour that start with angle -pi
 % CPLsortC(CPL,ctype,CA) - returns a contour that start with angle -pi% (by Tim Lueth, VLFL-Lib, 2015-SEP-15 as class: CLOSED POLYGON LISTS)% % The contour is resorted around its center. It starts afterwards with % the minimal (ctype='min') angle, the angle nearest to zero % (ctype='zero'), or the maximum angle (ctype='max'). Often is is % important to take only points of the convex hull (for example in case % of spirals). Therefore, then only points are selected from the convex % hull for the nearest angle to zero (ctype='czero') on the convex hull % or the minimal angle value of the convex hull (type='cmin').% % To resort the points backwards, use: circshift(CPS,[s 0]) % To compare results use: [A circshift(B,[s 0])]% % (Status of: 2015-10-02)% % [CPS,WA,CA,s]=CPLsortC(CPL,[ctype,CA])% === INPUT PARAMETERS ===% CPL: Original CPL% ctype: 'zero','min','max', 'czero', 'cmin'; default is 'czero'% CA: Optional Center Point; do not use it% === OUTPUT RESULTS ======% CPS: Resorted CPL% WA: corresponding angle% CA: Center of CPL% s: circshift value to return % % EXAMPLE: % CPLsortC(PLstar(10,10))% CPLsortC(CPLspiral(10,20,4*pi+pi/3))%

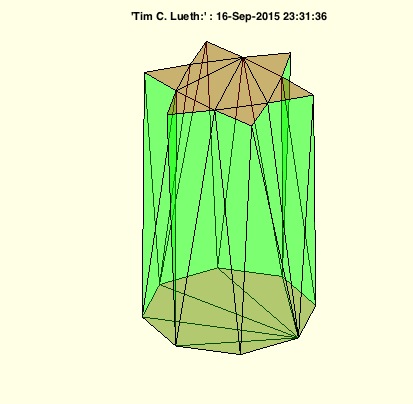

###### exp_2015_09_16(CPA,CPB)- EXPERIMENT TO SHOW THE PROBLEM WITH TETRAHEDRONS in 3D

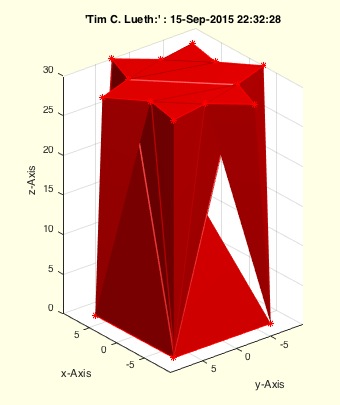

 % exp_2015_09_16(CPA,CPB) - EXPERIMENT TO SHOW THE PROBLEM WITH % TETRAHEDRONS in 3D % (by Tim Lueth, VLFL-Lib, 2015-SEP-15 as class: EXPERIMENTS)% % SG=exp_2015_09_16(CPA,CPB)% === INPUT PARAMETERS ===% CPA: Contour A% CPB: Contour B% === OUTPUT RESULTS ======% SG: Resulting Solid%
###### SGconvexHull(SG,sep)- returns the convex hulls of a solid geometry
 % SGconvexHull(SG,sep) - returns the convex hulls of a solid geometry% (by Tim Lueth, VLFL-Lib, 2015-SEP-15 as class: SURFACES)% % [SGC,TR3]=SGconvexHull(SG,[sep])% === INPUT PARAMETERS ===% SG: Solid Geometry% sep: false=one; true=separated solids% === OUTPUT RESULTS ======% SGC: Convex hull(s) of the Solid% TR3: Delaunay Triangulation% % EXAMPLE: % SGconvexHull(SGsample(7))% SGconvexHull(SGsample(9))%
###### SGarrangeSG(SGc,dist,adim)- arranges a cell list of solids in a single row
 % SGarrangeSG(SGc,dist,adim) - arranges a cell list of solids in a single row% (by Tim Lueth, VLFL-Lib, 2015-SEP-15 as class: SURFACES)% % 'SGarrangeSG' moves all solids of the cell list into the first quadrant % and then arranges them in line with a constant distance in x, y, or z % direction. It is a simple fnctn without any space optimization or size % ordering. For an optimal arrangement in a volume use 'SGpacking'.% In contrast to this fnctn, the fnctn 'SGarrangeSGC' uses a special % container format that allow to store different printing positions for % single solids of a set (Status of: 2017-01-21)% % See also: SGpacking, SGpatternXYZ, SGcopyrotZ, SGCaddSGn, SGCaddSG% % SG=SGarrangeSG(SGc,[dist,adim])% === INPUT PARAMETERS ===% SGc: Cell list of Solid Geometries% dist: fixed distance vector% adim: 'x' or 'y' or 'z' for arrangement% === OUTPUT RESULTS ======% SG: One single solid without any cell structure% % EXAMPLE: % SGarrangeSG ({SGbox(rand(1,3)),SGbox(rand(1,3)),SGbox(rand(1,3))},0.5)%
###### exp_2015_09_15- EXPERIMENT to understand the use of gear development
 %% PUBLISHABLE EXP_2015_09_15 EXPERIMENT TO UNDERSTAND THE USE OF GEAR DEVELOPMENT% (by Tim Lueth, VLFL-Lib, 2015-SEP-15 as class: EXPERIMENTS)%%% exp_2015_09_15 - EXPERIMENT to understand the use of gear development% (by Tim Lueth, VLFL-Lib, 2015-SEP-15 as class: EXPERIMENTS)% % exp_2015_09_15%

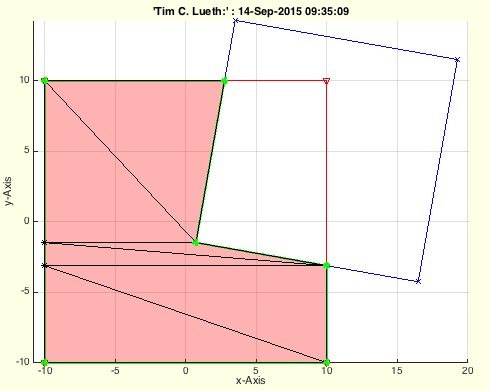

###### - EXPERIMENT to reimplement the function polybool
 % - EXPERIMENT to reimplement the procedure polybool% (by Tim Lueth, VLFL-Lib, 2015-SEP-14 as class: EXPERIMENTS)% % For reimplementation it is may be clever to check whether the source % code is visible and resuable% polybool% poly2fv% poly2ccw% poly2cw (Status of: 2015-09-14)% % %
###### svgpolylineofCPL (fid,CPL,stroke,width,fill)- writes CPLs as polygons or polyeder lines for a laser cutter
 % svgpolylineofCPL (fid,CPL,stroke,width,fill) - writes CPLs as polygons or polyeder lines for a laser cutter% (by Tim Lueth, VLFL-Lib, 2015-SEP-13 as class: FILE HANDLING)% % See also: CPLsortinout, selectNaN, CPLwriteSVG% % svgpolylineofCPL(fid,CPL,[stroke,width,fill])% === INPUT PARAMETERS ===% fid: File Identifyer% CPL: Close Contour List% stroke: red, blue, etc.% width: 1, 3% fill: none, or red, blue, etc.% % EXAMPLE: % CPLwriteSVG(CPLsample(10))%

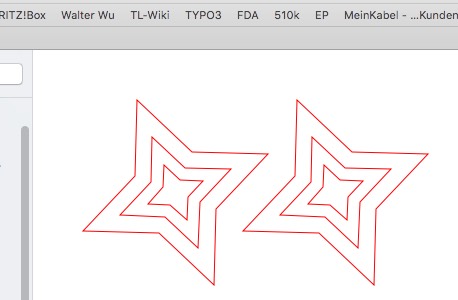

###### CPLwriteSVG (CPL,FNAME,ONAME,cutter,colmap,stkwd)- writes a SVG file for a laser cutter
 % CPLwriteSVG (CPL,FNAME,ONAME,cutter,colmap,stkwd) - writes a SVG file for a laser cutter% (by Tim Lueth, VLFL-Lib, 2015-SEP-13 as class: FILE HANDLING)% % This fnctns writes a CPL as SVG file for plotting or laser cutting. It % is possible to sort the CPLS from inside to outside and give them % different colors depending on the level of embedding.% The file also include wrt Christina Hein the "height", "width" and the % "viewbox" commands of SVG. (Status of: 2017-03-14)% % See also: svgpolylineofCPL, CPLsortinout, selectNaN% % CPLwriteSVG(CPL,[FNAME,ONAME,cutter,colmap,stkwd])% === INPUT PARAMETERS ===% CPL: Contour list% FNAME: Filename% ONAME: Creator Name; default is calling fnctn name% cutter: if true; CPLs are sorted inside out in different colors; % default is false% colmap: stroke color or colormap; default is {}% stkwd: stroke width% % EXAMPLE: Try different parameters % CPLwriteSVG(CPLsample(10))% CPLwriteSVG(CPLsample(14))% CPLwriteSVG(CPLsample(14),'','Tim Lueth',false,'blue',1)% CPLwriteSVG(CPLsample(14),'','Tim % Lueth',true,{'blue','red','green'},0.2)%
###### CPLofVLFL(VL,FL,fi)- creates a CPL and T of a planar VL,FL
 % CPLofVLFL(VL,FL,fi) - creates a CPL and T of a planar VL,FL% (by Tim Lueth, VLFL-Lib, 2015-SEP-12 as class: CLOSED POLYGON LISTS)% % Corresponding to procedure PLofVLFL.% if norm(ez)<1 we have a spherical surface.% Written on SY Bontekoning at Marina Panacea Palma de Mallorca% (Status of: 2015-09-12)% % [CPL,T,ez]=CPLofVLFL(VL,FL,[fi])% === INPUT PARAMETERS ===% VL: Vertex list% FL: Facet List% fi: index of facets; default is 1:end% === OUTPUT RESULTS ======% CPL: Closed Contour List% T: Transformation Matrix% ez: ez vector %

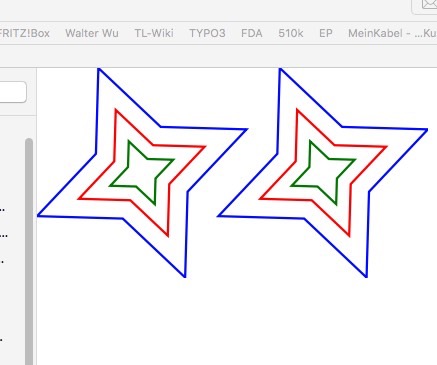

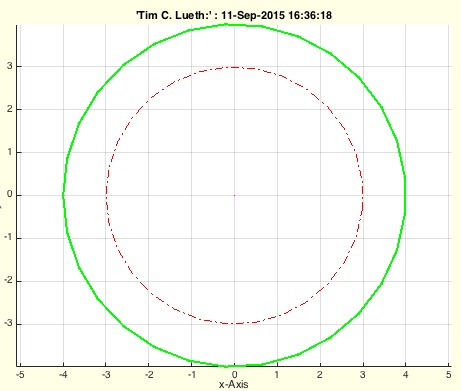

###### CPLgrow(CPL,w,edge)- grows a contour line in a distance

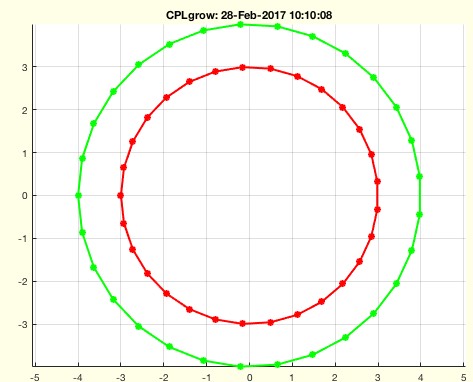

 % CPLgrow(CPL,w,edge) - grows a contour line in a distance% (by Tim Lueth, VLFL-Lib, 2015-SEP-11 as class: CLOSED POLYGON LISTS)% % Written on SY Bontekoning at Marina Panacea Palma de Mallorca (Status % of: 2015-09-20)% % See also: PLoutercontour, CPLoutercontour, PLgrow% % [RPL,ENL,PNL,PDL]=CPLgrow(CPL,w,[edge])% === INPUT PARAMETERS ===% CPL: Closed Polygon line% w: distance for growing% edge: true call CPLgrowEdge; default is false;% === OUTPUT RESULTS ======% RPL: Recalculated CPL% ENL: Edge normal vector list% PNL: Point normal vector lit% PDL: Point direction vector list% % EXAMPLE: % CPLgrow(PLcircle(4),-1);% CPLgrow(PLstar(4,20),-1);% CPLgrow(PLstar(10,12),-3,true);%
###### CPLinsideCPL(CPL,CPLs)- returns the contours of a CPL that inside another CPL
 % CPLinsideCPL(CPL,CPLs) - returns the contours of a CPL that inside % another CPL% (by Tim Lueth, VLFL-Lib, 2015-SEP-11 as class: CLOSED POLYGON LISTS)% % Written on SY Bontekoning at Marina Panacea Palma de Mallorca (Status % of: 2015-09-11)% % [ind,CPLN]=CPLinsideCPL(CPL,CPLs)% === INPUT PARAMETERS ===% CPL: One outer CPL that defines the border line% CPLs: CPL with several contours separated by NAN% === OUTPUT RESULTS ======% ind: index which contour is inside of CPLO% CPLN: CPL of all internal CPLs% % EXAMPLE: % CPLinsideCPL(PLcircle(9),CPLcopypattern(PLcircle(2),[5 5],[2 2]))%

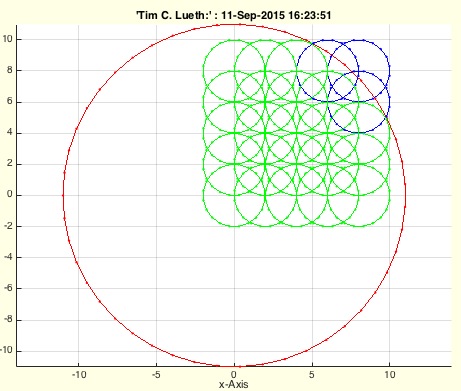

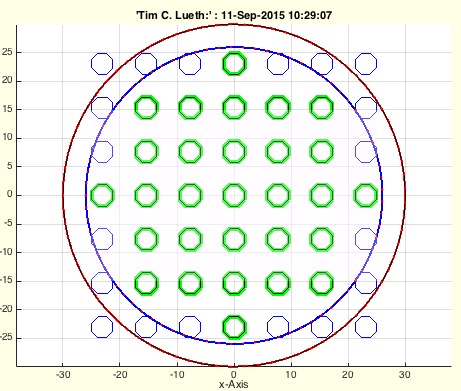

###### CPLfillPattern(CPL,CPLA,w,d,cut,pc)- fills a contour with copies of a pattern

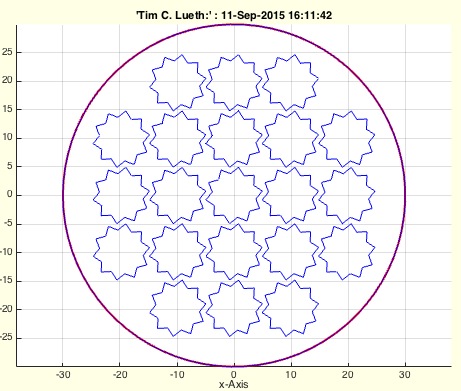

 % CPLfillPattern(CPL,CPLA,w,d,cut,pc) - fills a contour with copies of a pattern% (by Tim Lueth, VLFL-Lib, 2015-SEP-11 as class: CLOSED POLYGON LISTS)% % Written on SY Bontekoning at Marina Panacea Palma de Mallorca.% The filling algorithm is expecting that the pattern are centered around % [0 0]; otherwise by using parameter pc, the fnctn filling contour is % moved into its bounding box center% (Status of: 2017-03-20)% % [CPLN,XPL]=CPLfillPattern(CPL,CPLA,[w,d,cut,pc])% === INPUT PARAMETERS ===% CPL: Contour to be filled% CPLA: Filling pattern to be copied% w: border thickness of CPL; default is 1% d: distance between the pattern; default is w% cut: cut instead of removal of overlapping pattern; default is false% pc: 'c' moves the contour into the center; is 'c' on by default% === OUTPUT RESULTS ======% CPLN: CPL of resulting contour with punched patterns% XPL: CPL of punching patterns% % EXAMPLE: Fill a circle with stars:% CPLfillPattern(PLcircle(30),PLstar(5,20),0,0); % Both contours % are centered% CPLfillPattern(PLcircle(30),PLstar(5,20)+3,0,0); % Pattern shifting % is ignored% CPLfillPattern(PLcircle(30)+10,PLstar(5,20),0,0); % Contour shifting is % compensated% CPLfillPattern(PLcircle(30)+10,PLstar(5,20)+3,0,0,true,'x');%
###### CPLofplateSG(SG)- returns for a flat plate solid its contour
 % CPLofplateSG(SG) - returns for a flat plate solid its contour% (by Tim Lueth, VLFL-Lib, 2015-SEP-10 as class: SURFACES)% % This procedure is may be of limited use.% Written on SY Bontekoning in the bay Cala Portals (Mallorca)% (Status of: 2015-09-10)% % [CPL,z,zmin]=CPLofplateSG(SG)% === INPUT PARAMETERS ===% SG: Solid, i.e. a flat plate% === OUTPUT RESULTS ======% CPL: Contour of the plate% z: height of the plate% zmin: zmin used for SG% % EXAMPLE: % CPLofplateSG(SGbox([30,20,10]))%
###### exp_2015_09_10- EXPERIMENT to cut flat plates by an additional contour
 %% PUBLISHABLE EXP_2015_09_10 EXPERIMENT TO CUT FLAT PLATES BY AN ADDITIONAL CONTOUR% (by Tim Lueth, VLFL-Lib, 2015-SEP-10 as class: EXPERIMENTS)%%% exp_2015_09_10 - EXPERIMENT to cut flat plates by an additional contour% (by Tim Lueth, VLFL-Lib, 2015-SEP-10 as class: EXPERIMENTS)% % % Written on SY Bontekoning in the bay Cala Portals (Mallorca)% (Status of: 2015-09-10)% % exp_2015_09_10%

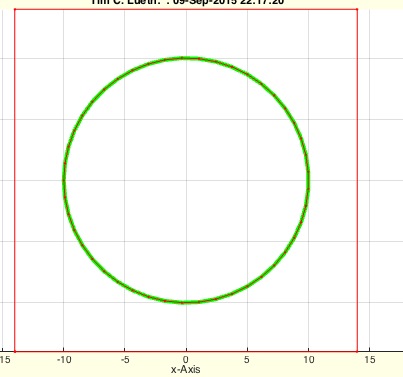

###### CPLinvert(CPL,add)- Change the direction of all contours in a CPL
 % CPLinvert(CPL,add) - Change the direction of all contours in a CPL% (by Tim Lueth, VLFL-Lib, 2015-SEP-09 as class: CLOSED POLYGON LISTS)% % Written on SY Bontekoning in the bay Cala Portals (Mallorca)% (Status of: 2015-09-09)% % NCPL=CPLinvert(CPL,[add])% === INPUT PARAMETERS ===% CPL: Closed Polygon List separated by NaN% add: frame around with distance add; default=0; no frame% === OUTPUT RESULTS ======% NCPL: Closed Polygon List reversed direction% % EXAMPLE: % CPLinvert(PLcircle(10),4)%

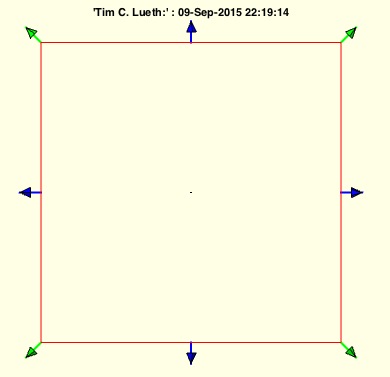

###### CPLedgeNormal(CPL)- returns edge normals and point normals for a CPL
 % CPLedgeNormal(CPL) - returns edge normals and point normals for a CPL% (by Tim Lueth, VLFL-Lib, 2015-SEP-09 as class: CLOSED POLYGON LISTS)% % Slow but correct fnctn for CPL and PL. In case of PL, the last edges % are not plotted.% Written on SY Bontekoning in the bay Cala Portals (Mallorca)% (Status of: 2017-01-13)% % Introduced first in SolidGeometry 2.5.1% % See also: VLedgeNormal, edgeNormal, PLnorm, PLELnorm, PLFLfaceNormal, % VLnorm, VLFLnormf, VLFLfaceNormal% % [ENL,PNL,PDL]=CPLedgeNormal(CPL)% === INPUT PARAMETERS ===% CPL: Closed Polygon List separated by NaN% === OUTPUT RESULTS ======% ENL: edge normal list% PNL: Point normal list% PDL: Point distance list (vector to next point)% % EXAMPLE: % CPLedgeNormal(PLcircle(10,4))% w=1; [~,PNL]=CPLedgeNormal(CPL); RPL=CPL-w*PNL;% % See also: VLedgeNormal, edgeNormal, PLnorm, PLELnorm, PLFLfaceNormal, % VLnorm, VLFLnormf, VLFLfaceNormal%
###### exp_2015_09_09- Experiment to convert solid blocks into plate structures
 %% PUBLISHABLE EXP_2015_09_09 EXPERIMENT TO CONVERT SOLID BLOCKS INTO PLATE STRUCTURES% (by Tim Lueth, VLFL-Lib, 2015-SEP-09 as class: EXPERIMENTS)%%% exp_2015_09_09 - Experiment to convert solid blocks into plate % structures% (by Tim Lueth, VLFL-Lib, 2015-SEP-09 as class: EXPERIMENTS)% % This experiments separates a solid geometry into all mounting faces. % Afterwards all mounting faces are converted into solid plates by using % SGofSurface. Therefor, a solid block is converted into a shell of six % plates with the same outer and inner geometry.% Written on SY Bontekoning in the bay Cala Portals (Mallorca)% (Status of: 2015-09-09)% % C=exp_2015_09_09% === OUTPUT RESULTS ======% C: resulting solid consisting of plates%
###### exp_2015_09_08- Experiment to convert solid blocks into plate structures
 %% PUBLISHABLE EXP_2015_09_08 EXPERIMENT TO CONVERT SOLID BLOCKS INTO PLATE STRUCTURES% (by Tim Lueth, VLFL-Lib, 2015-SEP-08 as class: EXPERIMENTS)%%% exp_2015_09_08 - Experiment to convert solid blocks into plate % structures% (by Tim Lueth, VLFL-Lib, 2015-SEP-08 as class: EXPERIMENTS)% % This experiments separates a solid geometry into all mounting faces. % Afterwards all mounting faces are converted into solid plates by using % SGofSurface. Therefor, a solid block is converted into a shell of six % plates with the same outer and inner geometry.% Written on SY Bontekoning in the bay Cala Egos (Mallorca)% (Status of: 2015-09-08)% % C=exp_2015_09_08% === OUTPUT RESULTS ======% C: resulting solid consisting of plates%

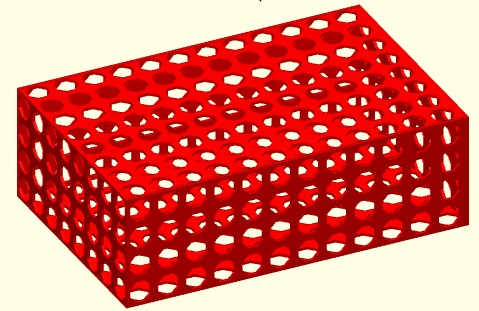

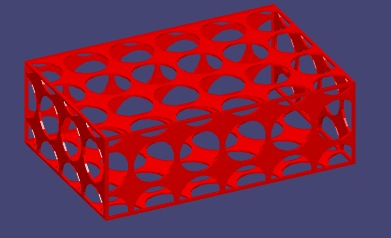

###### SGplatesofSGML(SG,th,pat,w,UVF)- converts a solid into a plated solid
 % SGplatesofSGML(SG,th,pat,w,UVF) - converts a solid into a plated solid% (by Tim Lueth, VLFL-Lib, 2015-SEP-07 as class: SURFACES)% % This fnctn separates a solid geometry into all mounting faces. % Afterwards all mounting faces are converted into solid plates by using % SGofSurface. Thus, a solid block is converted into a shell of several % plates with about the same outer and inner geometry. Each mounting face % will result in one separate solid. The plates do not share any vertex.% Written on SY Bontekoning in the bay Cala Egos (Mallorca)% (Status of: 2017-01-29)% % See also: TofSGMLez, TofSGML, TofVLUL, TofVLULez, TofSGMLez, MLofSG, % MLplot% % NSG=SGplatesofSGML(SG,[th,pat,w,UVF])% === INPUT PARAMETERS ===% SG: Original solid% th: Thickness of the plates; default is 0.5% pat: CPL of a pattern to fill% w: border size and pattern distance; default th% UVF: list of unit vectors for filling;default=all ([])% === OUTPUT RESULTS ======% NSG: resulting solid consisting of plates% % EXAMPLE: Convert a box into six plates% SGplatesofSGML(SGbox([30,20,10]))% SGplatesofSGML(SGbox([60,40,20]),2,PLcircle(3,4));% SGplatesofSGML(SGbox([60,40,20]),2,PLcircle(3,4),1,[0 -1 0;0 +1 0]);%
###### randsupp- returns a sign of minimum 1e-3 plus a random number of 1e-4
 % randsupp - returns a sign of minimum 1e-3 plus a random number of 1e-4% (by Tim Lueth, VLFL-Lib, 2015-SEP-07 as class: AUXILIARY PROCEDURES)% % s=±[1e-3..2e-3]% Written on SY Bontekoning in the bay Cala Egos (Mallorca)% (Status of: 2015-09-07)% % s=randsupp% === OUTPUT RESULTS ======% s: random supplement%
###### exp_2015_09_07- Experiment to convert solid blocks into plate structures
 %% PUBLISHABLE EXP_2015_09_07 EXPERIMENT TO CONVERT SOLID BLOCKS INTO PLATE STRUCTURES% (by Tim Lueth, VLFL-Lib, 2015-SEP-07 as class: EXPERIMENTS)%%% exp_2015_09_07 - Experiment to convert solid blocks into plate % structures% (by Tim Lueth, VLFL-Lib, 2015-SEP-07 as class: EXPERIMENTS)% % this experiments separates a solid geometry into all mounting faces. % Afterwards all mounting faces are converted into solid plates by using % SGofSurface. Therefor, a solid block is converted into a shell of six % plates with the same outer and inner geometry.% Written on SY Bontekoning in the bay Cala Egos (Mallorca)% (Status of: 2015-09-07)% % C=exp_2015_09_07% === OUTPUT RESULTS ======% C: resulting solid consisting of plates%
