New in SG-Lib 2.0

Last change of this page: 2017-07-14
FLofTL(TL)- returns all facets of a tetrahedron list
FLofTL(TL) % FLofTL(TL) - returns all facets of a tetrahedron list
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-25 as class: TETRAHEDRONS)
%
% The nx4 list is converted into a (n*4)x3 list
% FL=[TL(:,[2 3 4]); TL(:,[2 4 1]); TL(:,[4 3 1]); TL(:,[2 1 43])]
% (Status of: 2014-12-26)
%
% FL=FLofTL(TL)
% === INPUT PARAMETERS ===
% TL: Tetrahedron list
% === OUTPUT RESULTS ======
% FL: Facet list (all normal vectors outside)
%
ELorder(EL,jv)- reorders the edge list (triangle, tetrahedron) to individual polygons, surfaces, solids
ELorder(EL,jv) % ELorder(EL,jv) - reorders the edge list (triangle, tetrahedron) to individual polygons, surfaces, solids
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-25 as class: AUXILIARY PROCEDURES)
%
% Equivalent to TRorder or SGorder but on edge level (in fact works with
% all index lists). Improved in comparision with VLFLseparate.
% All edges,facets,tetrahedrons of a solid use the same points. In case
% that a solid geometry can be separated into several independent solids,
% the given list here is ordered and in addition a list with starting
% rows and end rows in the returned list is returned.

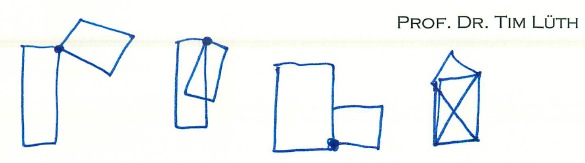

% - For edges, one common point defines the attachment
% - For facets, two common points define the attachment
% - For tetrahedrons, three common points define the attachment
% Anyway, exceptions are possible by the second input parameter
% ELorder does not use the fnctn neighbors (Status of: 2017-02-21)
%
% See also: ELorder, FLorder, FLseparate, TRorder, SGorder, SGseparate
%
% [ELN,SIL]=ELorder(EL,[jv])
% === INPUT PARAMETERS ===
% EL: edge list/facet list/tetrahedron list consisting of several solids
% jv: common vertices that define a connection; default is size(EL,2)-1
% === OUTPUT RESULTS ======
% ELN: ordered edge list/facet list/tetrahedron list of several solids
% SIL: Solid index list (start and end-row) in returned list
%
% EXAMPLE: Separate the surface of SGsample(8) and SGsample(9)
% SG=SGsample(8);
% TR3=triangulation(SG.FL,SG.VL);
% FEL=featureEdges(TR3,0.001);
% [a,b]=ELorder(FEL); b
%
exp_2014_12_25- EXPERIMENT to show different feature edges, facets, and tetrahedrons of a SGsample
exp_2014_12_25 % exp_2014_12_25 - EXPERIMENT to show different feature edges, facets,
% and tetrahedrons of a SGsample
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-25 as class: EXPERIMENTS)
%
% exp_2014_12_25
%

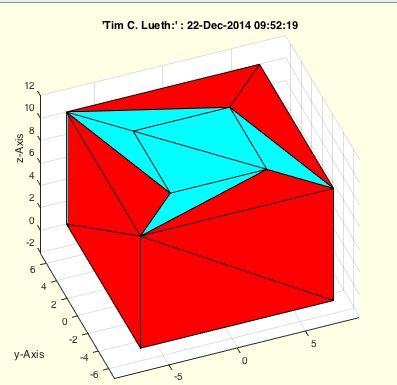

VLFLofTR(TR)- returns the freeboundary surface of a tetrahedron or the surface of a triangulation
VLFLofTR(TR) % VLFLofTR(TR) - returns the freeboundary surface of a tetrahedron or the
% surface of a triangulation
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-22 as class: TETRAHEDRONS)
%
% Returns the surface model (VL,FL) from a tetrahedron volume model by
% using freeBoundary. If the triangulation is a surface model, the
% ConnectivityList is returned. (Status of: 2014-12-22)
%
% [VL,FL]=VLFLofTR(TR)
% === INPUT PARAMETERS ===
% TR: Triangulation (nx4 or nx3)
% === OUTPUT RESULTS ======
% VL: Vertex List (Point List)
% FL: Facet List (ConnectivityList or freeBoundary)
%
% EXAMPLE:
% [VL,FL]=VLFLofTR(exp_2014_12_23 (SGsample(16))); close all; VLFLfigure;
% view(-30,30); VLFLplots(VL,FL);
%

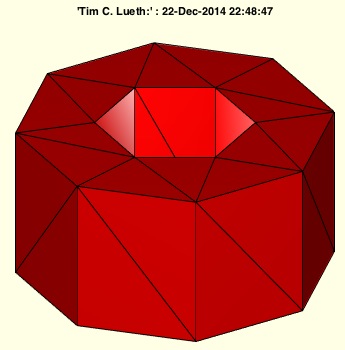

exp_2014_12_23(SG)- EXPERIMENT returns a tetrahedron triangulation from a surface triangulation
exp_2014_12_23(SG) % exp_2014_12_23(SG) - EXPERIMENT returns a tetrahedron triangulation
% from a surface triangulation
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-22 as class: TETRAHEDRONS)
%
% This is the experiment to implement TRofSG (Status of: 2014-12-22)
%
% TR=exp_2014_12_23(SG)
% === INPUT PARAMETERS ===
% SG: Solid Geometry (VL,FL)
% === OUTPUT RESULTS ======
% TR: Tetrahedron triangulation
%
exp_2014_12_22-
exp_2014_12_22 % exp_2014_12_22 -
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-22 as class: EXPERIMENTS)
%
% exp_2014_12_22
%

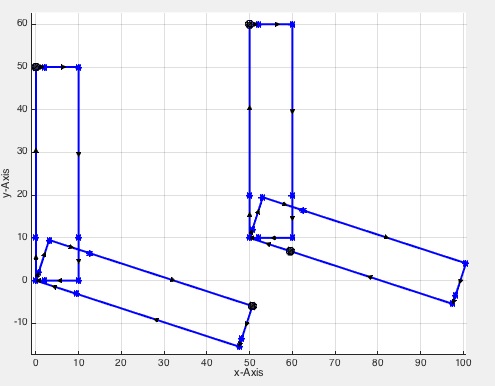

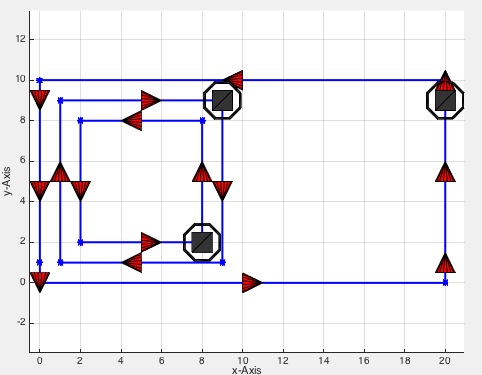

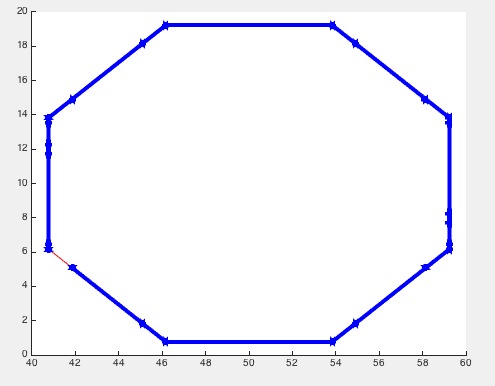

PLELofFeatureEdges(TR,alpha)- returns sorted closed polygon edge lists of the feature edges of a solid
PLELofFeatureEdges(TR,alpha) % PLELofFeatureEdges(TR,alpha) - returns sorted closed polygon edge lists of the feature edges of a solid
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-21 as class: SURFACES)
%
% fast and powerful fnctn that links the feature edges to closed polygon
% edge lists with a defined normal vector
% Uses: TRfeatureEdgeFacets (Status of: 2017-04-05)
%
% See also: FLfeatureEdgeSurface, FLfeatureEdgeSurface2,
% PLELofFeatureEdges2, TRfeatureEdgeFacets, FEplot
%
% [ELFL,SIL]=PLELofFeatureEdges(TR,[alpha])
% === INPUT PARAMETERS ===
% TR: surface triangulation for feature edges
% alpha: feature edge angle
% === OUTPUT RESULTS ======
% ELFL:
% SIL: Selected Index List for
%
% EXAMPLE: Recreate the polygons of a
% closeall; SG=SGsample(16);
% TR=triangulation(SG.FL,SG.VL);
% VLFLfigure; [ELFL,SIL]=PLELofFeatureEdges (TR);
%
TRfeatureEdgeFacets(TR,alpha)- returns the list of facets linked to edges of the featureEdges
TRfeatureEdgeFacets(TR,alpha) % TRfeatureEdgeFacets(TR,alpha) - returns the list of facets linked to edges of the featureEdges
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-21 as class: SURFACES)
%
% EdgelistFacetlist
% [edgestart (1) edgeend (2) facetattached (3) normalvectoroffacet (4:6)]
% Quite frustrating. This fnctn took 30 minutes after 40 minutes sport
% after several days unsuccessful programming exp_2014_12_16. (Status of:
% 2017-04-05)
%
% See also: FEplot, FLfeatureEdgeSurface, FLfeatureEdgeSurface2,
% PLELofFeatureEdges, PLELofFeatureEdges2, FEplot
%
% [ELFL]=TRfeatureEdgeFacets(TR,[alpha])
% === INPUT PARAMETERS ===
% TR: triangulation nx3
% alpha: filterangle for featureEdges
% === OUTPUT RESULTS ======
% [ELFL]:
%

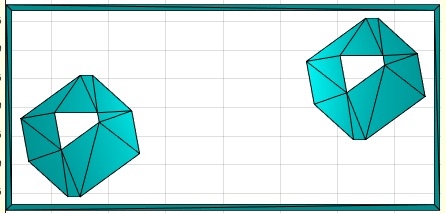

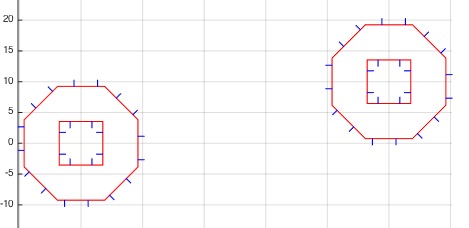

SGorder(SG)- reorders the triangle facets to individual solids
SGorder(SG) % SGorder(SG) - reorders the triangle facets to individual solids
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-20 as class: AUXILIARY PROCEDURES)
%
% Equivalent to TRorder but on facet level (one day may be fused).
% Improved in comparision with VLFLseparate.
%
% All surface facets of a solid use the same points. In case that a solid
% geometry has a facet list that in fact is separated into several
% solids, this fnctns reorders the facet list to connected surfaces and
% returns also a list with starting facet and end facet of the list.
% (Status of: 2017-02-21)
%
% See also: ELorder, FLorder, FLseparate, TRorder, SGseparate
%
% [SG,SIL]=SGorder(SG)
% === INPUT PARAMETERS ===
% SG: Solid geometry whose facet list consisting of several solids
% === OUTPUT RESULTS ======
% SG: Solid geometry whose facet list consisting of several solids
% SIL: Solid index list (start and end-facet) in facet list
%

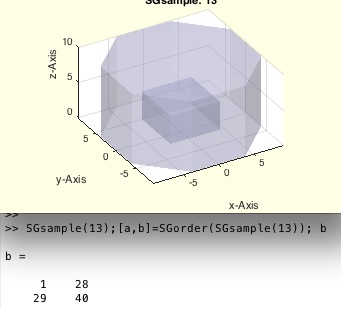

% EXAMPLE: Separate the surface of SGsample(13)
% SGsample(13);[a,b]=SGorder(SGsample(13)); b
%

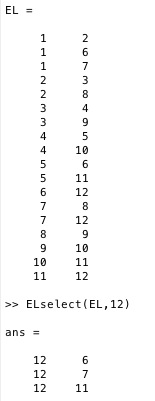

ELselect(EL,i)- return all edges from an edge list start start or end with and index
ELselect(EL,i) % ELselect(EL,i) - return all edges from an edge list start start or end
% with and index
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-19 as class: AUXILIARY PROCEDURES)
%
% fast efficient single row procedure (makro) (Status of: 2014-12-19)
%
% ELi=ELselect(EL,i)
% === INPUT PARAMETERS ===
% EL: Edge list
% i: vertex index
% === OUTPUT RESULTS ======
% ELi: Edge list from index. ELi(:,1) is always i
%
exp_2014_12_19 (SG,fa)- EXPERIMENT to create tetrahedrons from surfaces by using the feature-edges
exp_2014_12_19 (SG,fa) % exp_2014_12_19 (SG,fa) - EXPERIMENT to create tetrahedrons from
% surfaces by using the feature-edges
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-19 as class: EXPERIMENTS)
%
% work in progress (Status of: 2014-12-22)
%
% exp_2014_12_19([SG,fa])
% === INPUT PARAMETERS ===
% SG: Solid geometry (surface model)
% fa: feature edge angle
%

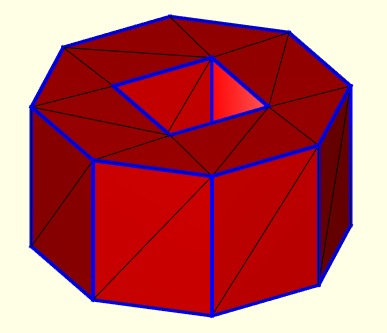

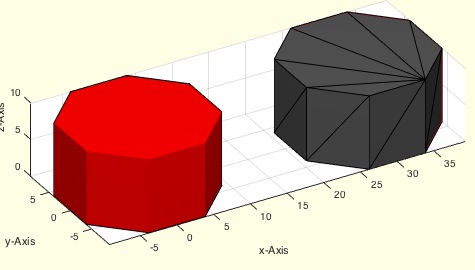

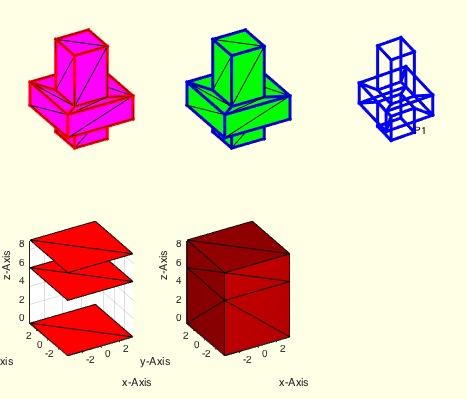

exp_2014_12_16- PUBLISHABLE EXPERIMENT to understand the power of featureEdges for the reconstruction of solids
exp_2014_12_16 % exp_2014_12_16 - PUBLISHABLE EXPERIMENT to understand the power of
% featureEdges for the reconstruction of solids
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-16 as class: EXPERIMENTS)
%

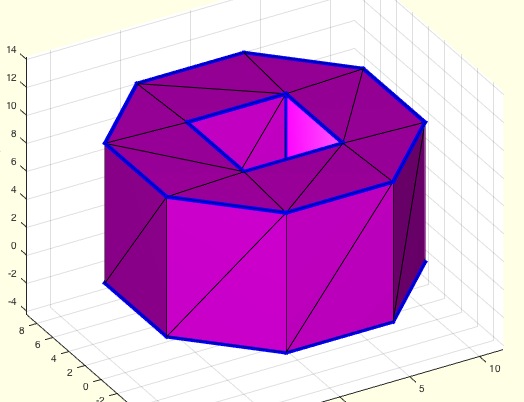

% 1. This experiment starts with the construction of a surface model of a
% n-edge polygon, extruded to a n-edge cylinder. It consists of a vertex
% list and a surface facet list (VL,FL).
% 2. Next we create a tetrahedron delaunay-triangulation based on the 3D
% vertex list (TR). The facets created here does not have to be the same
% as of the ones of the first surface generation. Could be but not have
% to.
% 3. We take the feature edge list which as to be the same for both
% representations. Even if the facets were different since there is no
% unique/bijective representation of a surface by facets, the feature
% edge list must be the same constraint lines of the surface.
% 4. Next we try to reconnect the edge lists to planar surfaces by
% finding closed polygon lines aorund surfaces with the same normal
% vector. This is done by the new procedure TRselect that has the same
% job as VLELselect. Nevertheless here we can use the knowledge on the
% normal vectors of the facet. (Status of: 2014-12-26)
%
% exp_2014_12_16
%

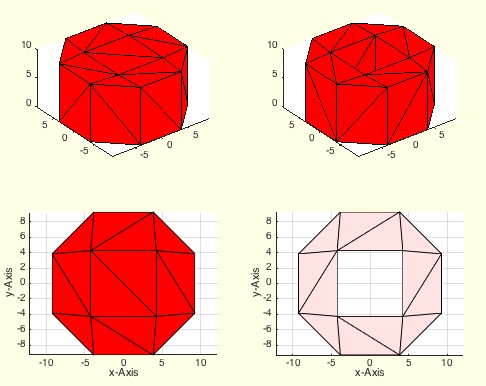

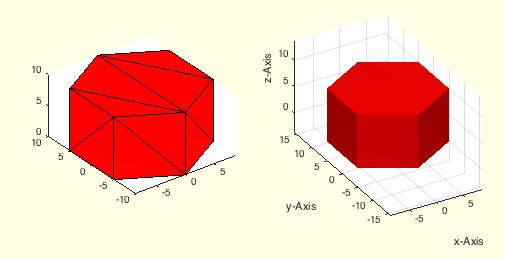

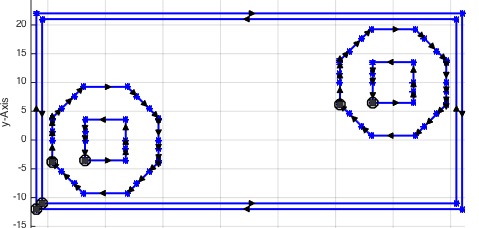

exp_2014_12_13c(n,n2)- Tetrahedron solids based on closed polygon list processing
exp_2014_12_13c(n,n2) % exp_2014_12_13c(n,n2) - Tetrahedron solids based on closed polygon list
% processing
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-14 as class: EXPERIMENTS)
%

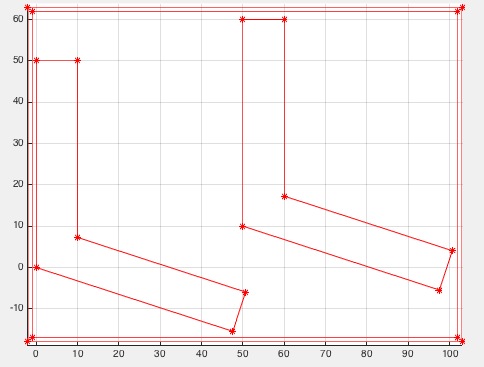

% dte=exp_2014_12_13c creates first an outside n-point polygon with an
% optional m-point polygon insisde, depending on the input parameters.
% Then these close polygon lines (CPLs) should be converted into a
% tetrahedron triangulation of an extrusion of the CPL with the height z.
% For this purpose a frame is created outside of the polygon first. Then
% contour by contour a delaunay triangulation is created.
%
% The concept of this procedure is similar to CLPrecontour but it works
% on tetrahedron solids.
% While facet based surfaces are enclosed and described by polygons
% (cw,ccw)
% terahedron based solids are enclosed and described by surfaces.
% In this procedure we create tetrahedron by simple 2.5D extrusion of
% CPLs and add or remove the inner parts.
%
%
% Created after exp_2014_12_14 the same day later. (Status of: 2014-12-19)
%
% dte=exp_2014_12_13c([n,n2])
% === INPUT PARAMETERS ===
% n: Number of points of the outer polygon, default is 4
% n2: Optional number of points of the inner polygon, default is 0
% === OUTPUT RESULTS ======
% dte: resulting tetrahedron triangulation
%

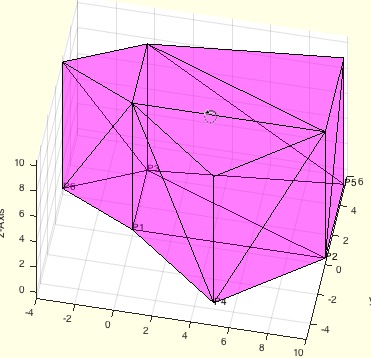

TRselect(TR,TL)- returns a reduced tetrahedron triangulation for a given tetrahedron list
TRselect(TR,TL) % TRselect(TR,TL) - returns a reduced tetrahedron triangulation for a
% given tetrahedron list
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-14 as class: TETRAHEDRONS)
%
% In some cases, for instance when surfaces are tessellated, it makes
% more sense to operate using only the required vertices. Afterwards, the
% vertex list is much shorter, the index list reindexed. By using
% TL=SI(NTL), EL=SI(NEL) for a new edge list or FL=SI(NFL) for a facet
% list, the resulting EL or EL are backindexed to the original vertex
% list.
% TL=SI(NTL); if size(TL,2)==1; TL=TL'; end;
% FL=SI(NFL); if size(FL,2)==1; FL=FL'; end;
% EL=SI(NEL); if size(EL,2)==1; EL=EL'; end;
% This procedure is similar to VLFLselect or VLELselect.
% (Status of: 2014-12-14)
%
% [TR,SI,TL]=TRselect(TR,TL)
% === INPUT PARAMETERS ===
% TR: Tetrahedron triangulation
% TL: Subset of TR.ConnectivityList
% === OUTPUT RESULTS ======
% TR: New tetrahedron triangulation consisting of minimal points for the
% ConnectivityList subset
% SI: Sorting index
% TL: Reindexed subset of TR.ConnectivityList
%
TRcat(TRA,TRB)- returns a concatenation of tetrahedron solids without any checks
TRcat(TRA,TRB) % TRcat(TRA,TRB) - returns a concatenation of tetrahedron solids without
% any checks
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-14 as class: TETRAHEDRONS)
%
% Use TRunique afterwards if desired, to remove doubled points (Status
% of: 2014-12-14)
%
% TR=TRcat(TRA,TRB)
% === INPUT PARAMETERS ===
% TRA: Triangulation A
% TRB: Triangulation B
% === OUTPUT RESULTS ======
% TR: Concatenation of Triangulation of A and B
%
exp_2014_12_13b(n,n2)- Tetrahedron solids based on closed polygon list processing
exp_2014_12_13b(n,n2) % exp_2014_12_13b(n,n2) - Tetrahedron solids based on closed polygon list
% processing
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-13 as class: EXPERIMENTS)
%
% The concept of this procedure is similar to CLPrecontour but it works
% on tetrahedron solids.
% While facet based surfaces are enclosed and described by polygons
% (cw,ccw)
% terahedron based solids are enclosed and described by surfaces.

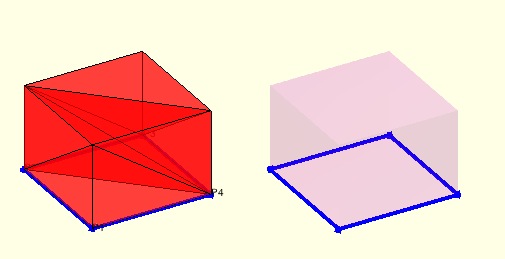

% In this procedure we create tetrahedron by simple 2.5D extrusion of
% CPLs and add or remove the inner parts.
%
%
% Created after exp_2014_12_14 the same day later. (Status of: 2014-12-13)
%
% dtx=exp_2014_12_13b([n,n2])
% === INPUT PARAMETERS ===
% n: Number of points of the outer polygon, default is 4
% n2: Optional number of points of the inner polygon, default is 0
% === OUTPUT RESULTS ======
% dtx: resulting tetrahedron triangulation
%
TRunique(TR)- returns a tetrahedron triangulation with unique Points
TRunique(TR) % TRunique(TR) - returns a tetrahedron triangulation with unique Points
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-13 as class: TETRAHEDRONS)
%
% Reduces the Points to unique Points and reindexes the Connectivity List
% (Status of: 2014-12-13)
%
% TR=TRunique(TR)
% === INPUT PARAMETERS ===
% TR: Tetrahedron triangulation
% === OUTPUT RESULTS ======
% TR: Tetrahedron triangulation with unique Points
%
TRorder(TR)- reorders the tetrahedrons to individual solids
TRorder(TR) % TRorder(TR) - reorders the tetrahedrons to individual solids
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-13 as class: TETRAHEDRONS)
%
% All tetrahedrons of a solid use the same points. In case that a TR
% (triangulation) has a ConnectivityList that in fact is separated into
% several solids, this fnctns reorders the ConnectivityList to connected
% tetrahedrons and returns also a list with starting tetrahedron and end
% tetrahedron of the list. (Status of: 2017-02-21)
%
% See also: ELorder, FLorder, FLseparate, SGorder, SGseparate
%
% [TR,SIL]=TRorder(TR)
% === INPUT PARAMETERS ===
% TR: tetrahedron triangulation consisting of several solids
% === OUTPUT RESULTS ======
% TR: tetrahedron triangulation consisting of several separated solids
% SIL: Solid index list (start and end-tetrahedron) in ConnectivityList
%
exp_2014_12_13a (n,n2)- Tetrahedron solids based on closed polygon list processing
exp_2014_12_13a (n,n2) % exp_2014_12_13a (n,n2) - Tetrahedron solids based on closed polygon
% list processing
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-13 as class: EXPERIMENTS)
%
% The concept of this procedure is similar to CLPrecontour but it works
% on tetrahedron solids.
% While facet based surfaces are enclosed and described by polygons
% (cw,ccw)
% terahedron based solids are enclosed and described by surfaces.
% In this procedure we create tetrahedron by simple 2.5D extrusion of
% CPLs and add or remove the inner parts.
%
%
% Created after exp_2014_12_14 the same day later. (Status of: 2014-12-13)
%
% exp_2014_12_13a([n,n2])
% === INPUT PARAMETERS ===
% n: Number of points of the outer polygon, default is 4
% n2: Optional number of points of the inner polygon, default is 0
%
exp_2014_12_14(n,n2)- Experiment to show the structure of Delaunay Tesselation of Tetrahedron
exp_2014_12_14(n,n2) % exp_2014_12_14(n,n2) - Experiment to show the structure of Delaunay
% Tesselation of Tetrahedron
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-13 as class: EXPERIMENTS)
%
% TR=exp_2014_12_14([n,n2])
% === INPUT PARAMETERS ===
% n: Number of edges of an out circle
% n2: Optional number of edges of an inner circle; default 0
% === OUTPUT RESULTS ======
% TR:
%
% EXAMPLE: exp_2014_12_14 (10,4)
%

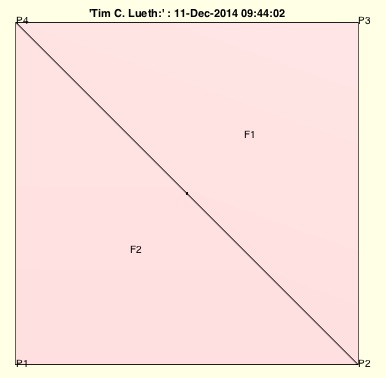

exp_2014_12_13- PUBLISHABLE EXPERIMENT shows the difference between triangulation and delaunayTriangulation
exp_2014_12_13 % exp_2014_12_13 - PUBLISHABLE EXPERIMENT shows the difference between
% triangulation and delaunayTriangulation
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-12 as class: EXPERIMENTS)
%
% This procedure shows the difference between triangulation and
% delaunayTriangulation (Status of: 2014-12-13)
%
% exp_2014_12_13
%
exp_2014_12_12- PUBLISHABLE EXPERIMENT shows the difference between triangulation and delaunayTriangulation
exp_2014_12_12 % exp_2014_12_12 - PUBLISHABLE EXPERIMENT shows the difference between
% triangulation and delaunayTriangulation
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-11 as class: EXPERIMENTS)
%
% This procedure shows the difference between triangulation and
% delaunayTriangulation (Status of: 2014-12-12)
%
% exp_2014_12_12
%

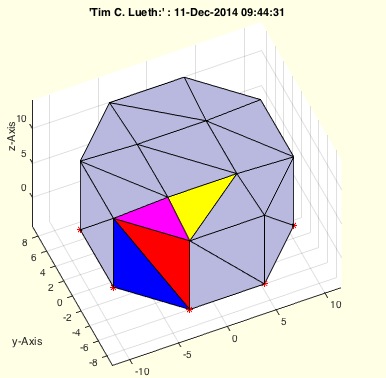

exp_2014_12_11- PUBLISHABLE EXPERIMENT for tetrahedron generation
exp_2014_12_11 % exp_2014_12_11 - PUBLISHABLE EXPERIMENT for tetrahedron generation
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-10 as class: EXPERIMENTS)
%
% exp_2014_12_11
%
exp_2014_12_10(XFL)- EXPERIMENT just shows for a prismatic object based on a traingle the evolving tetrahedron
exp_2014_12_10(XFL) % exp_2014_12_10(XFL) - EXPERIMENT just shows for a prismatic object
% based on a traingle the evolving tetrahedron
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-10 as class: EXPERIMENTS)
%
% Palma Cala Major - Using
% TL=TLofFL([3 1 2],size(PL,1)) and
% FL=FLofTetrahedron(TL) (Status of: 2014-12-10)
%
% exp_2014_12_10([XFL])
% === INPUT PARAMETERS ===
% XFL: Facet for the triangle; default is [3 1 2]
%
% EXAMPLE: Just try
% exp_2014_12_10
%
VLTLplot(VL,TL,c,so)- plots a tetrahedron list as one volume or as separated tetrahedrons
VLTLplot(VL,TL,c,so) % VLTLplot(VL,TL,c,so) - plots a tetrahedron list as one volume or as separated tetrahedrons
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-09 as class: TETRAHEDRONS)
%
% uses tetramesh to print all tetrahedrons in one step.
% Each tetrahedron is plotted seperately (slow) (Status of: 2017-02-08)
%
% See also: VLFLplot, SGplot, TRplot, VLFLplot4
%
% h=VLTLplot(VL,TL,[c,so])
% === INPUT PARAMETERS ===
% VL: Vertex list
% TL: Tetrahedrons list
% c: color
% so: true = single handle, false = separated handles
% === OUTPUT RESULTS ======
% h: handles to graphics object
%

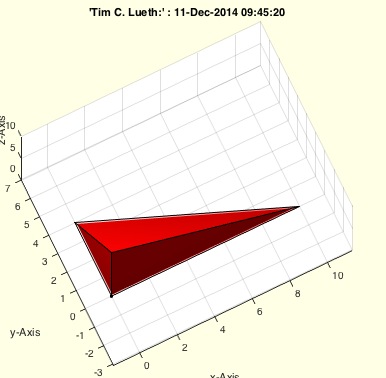

exp_2014_12_09- just shows for a prismatic object based on a traingle the tetrahedron
exp_2014_12_09 % exp_2014_12_09 - just shows for a prismatic object based on a traingle
% the tetrahedron
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-09 as class: EXPERIMENTS)
%
% Palma Cala Major (Status of: 2014-12-09)
%
% exp_2014_12_09
%
exp_2014_12_08(XFL)- EXPERIMENT just shows for a prismatic object based on a traingle the evolving tetrahedron
exp_2014_12_08(XFL) % exp_2014_12_08(XFL) - EXPERIMENT just shows for a prismatic object
% based on a traingle the evolving tetrahedron
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-08 as class: EXPERIMENTS)
%
% Palma Cala Major - Using
% TL=TLofFL([3 1 2],size(PL,1)) and
% FL=FLofTetrahedron(TL) (Status of: 2014-12-10)
%
% exp_2014_12_08([XFL])
% === INPUT PARAMETERS ===
% XFL: Facet for the triangle; default is [3 1 2]
%
% EXAMPLE: Just try
% exp_2014_12_08 ([ 1 2 3])
%
exp_2014_12_07(CPL);- EXPERIMENT Extrude a CPL into a tetrahedron representation
exp_2014_12_07(CPL); % exp_2014_12_07(CPL); - EXPERIMENT Extrude a CPL into a tetrahedron
% representation
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-06 as class: EXPERIMENTS)
%
% Work in progress, Should use the slicing result of exp_2014_12_06
% Not finished (Status of: 2014-12-10)
%
% [PL,FL]=exp_2014_12_07([CPL]);
% === INPUT PARAMETERS ===
% CPL): Closed polygon list
% === OUTPUT RESULTS ======
% PL: Point list
% FL: Facet list
%
TLofFL(FL,n)- converts a planar facet list into a 2.5 tetrahedron list
TLofFL(FL,n) % TLofFL(FL,n) - converts a planar facet list into a 2.5 tetrahedron list
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-06 as class: TETRAHEDRONS)
%
% Work in progress, does not work correctly for more than 1 triangle
% (Status of: 2014-12-06)
%
% TL=TLofFL(FL,[n])
% === INPUT PARAMETERS ===
% FL: Facet list
% n: number of points in vertex list
% === OUTPUT RESULTS ======
% TL: Tetrahedron list
%
FLshift(FL)- returns a shifted and ordered facet list
FLshift(FL) % FLshift(FL) - returns a shifted and ordered facet list
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-06 as class: AUXILIARY PROCEDURES)
%
% The facet list is rotated line by line so that the smallest vertex
% index is in the left column.
%
% In contrast to FLorder, the rows are not sorted afterwards. (Status of:
% 2015-08-05)
%
% FL=FLshift(FL)
% === INPUT PARAMETERS ===
% FL: Original facet list
% === OUTPUT RESULTS ======
% FL: Final facet list
%
% EXAMPLE:
% FL=[10 20 30; 30 10 20; 20 30 10]
% FL=[FL*1.5;FL]
% FLshift(FL)
%

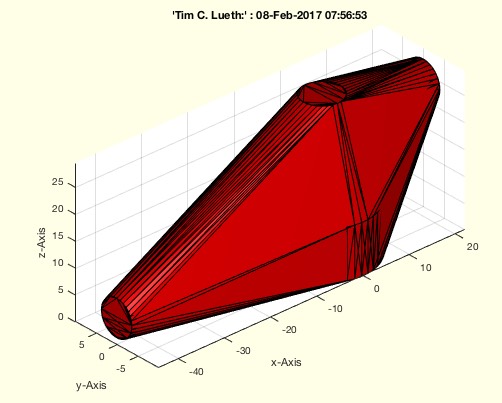

TRplot(TR,c,fb)- plots a tetrahedron triangulation similar to SGplot
TRplot(TR,c,fb) % TRplot(TR,c,fb) - plots a tetrahedron triangulation similar to SGplot
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-06 as class: TETRAHEDRONS)
%
% more or less: tetramesh(TR4)
%
% (Status of: 2017-02-08)
%
% See also: VLFLplot, SGplot, VLTLplot, VLFLplot4
%
% h=TRplot(TR,[c,fb])
% === INPUT PARAMETERS ===
% TR: Tetrahedron
% c: color
% fb: true=freeBoundary [default], false=tetrahedrons,
% === OUTPUT RESULTS ======
% h: handles
%
% EXAMPLE: Show the convex hull
% A=SGsample(17)
% TR=delaunayTriangulation(A.VL);
% TRplot(TR)
%
TRofCPLz (CPL,z)- returns a valid tetrahedron representation of a solid
TRofCPLz (CPL,z) % TRofCPLz (CPL,z) - returns a valid tetrahedron representation of a solid
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-06 as class: TETRAHEDRONS)
%
% This procedures is an extension of the first ideas with DTofPLELz
% (2014-01-14). This time the appraoch is based on the concepts Closed
% Polygon Lines (CPL) and Triangulation (TR) wich are both available in
% Matlab 2014b. (Status of: 2014-12-06)
%
% TRofCPLz(CPL,z)
% === INPUT PARAMETERS ===
% CPL: Closed polygon list for base plate
% z: solid height in z-direction
%
CPLnonmanifold(CPL)- true if a point is used twice in the CPL or PL
CPLnonmanifold(CPL) % CPLnonmanifold(CPL) - true if a point is used twice in the CPL or PL
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-06 as class: AUXILIARY PROCEDURES)
%
% Slow, try to avoid if possbile (Status of: 2014-12-06)
%
% nm=CPLnonmanifold(CPL)
% === INPUT PARAMETERS ===
% CPL: closed polygon list
% === OUTPUT RESULTS ======
% nm: true if non manifold points
%
% EXAMPLE:
% CPLnonmanifold(CPLofPL(PLcircle(10)))
%
CPLofPL(PL)- appends the first point to a point list of required
CPLofPL(PL) % CPLofPL(PL) - appends the first point to a point list of required
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-06 as class: AUXILIARY PROCEDURES)
%
% The last point of a CPL has to be the first point.
% Slow, please try to avoid if possibile (Status of: 2014-12-26)
%
% See also: PLofCPL
%
% CPL=CPLofPL(PL)
% === INPUT PARAMETERS ===
% PL: point list
% === OUTPUT RESULTS ======
% CPL: closed polygon list
%
exp_2014_12_06(z)- PUBLISHABLE experiment to show the result of different slicing techniques
exp_2014_12_06(z) % exp_2014_12_06(z) - PUBLISHABLE experiment to show the result of
% different slicing techniques
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-06 as class: EXPERIMENTS)
%
% Does work currently only with correct sample files (no errors in the
% VL/FL) (Status of: 2014-12-06)
%
% CPL=exp_2014_12_06([z])
% === INPUT PARAMETERS ===
% z: z-coordinate for slicing plane
% === OUTPUT RESULTS ======
% CPL: Resulting contour polygon list
%
CPLrecontour(CPL,frm)- returns a contour list for a sliced/cutted object
CPLrecontour(CPL,frm) % CPLrecontour(CPL,frm) - returns a contour list for a sliced/cutted
% object
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-05 as class: ANALYTICAL GEOMETRY)
%
% A given CPL (closed polygon list, contains NaN) is ordered by x and y
% values first. Then each polygon is analyzed regarding the clockwise
% direction (cw/ccw). Then all polygons are united or subtracted
% depending on their direction. To have a defined start point, a frame is
% generated that is the maximum outside border of the polygons inside. By
% a second parameter it is possible to delete the frame from the
% resulting CPL.
% The resulting list is a always VALID closed polygon list.
%
% (Status of: 2014-12-06)
%
% NPL=CPLrecontour(CPL,[frm])
% === INPUT PARAMETERS ===
% CPL: Closed polygon list, contains NaN
% frm: true=frame, false=no frame
% === OUTPUT RESULTS ======
% NPL: resulting closed polygon list (with our without a frame)
%

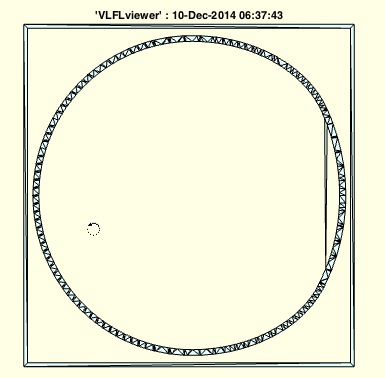

exp_2014_12_04- PUBLISHABLE EXPERIMENT SIMILAR TO 2014_12_05 but for STL Files
exp_2014_12_04 % exp_2014_12_04 - PUBLISHABLE EXPERIMENT SIMILAR TO 2014_12_05 but for
% STL Files
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-05 as class: EXPERIMENTS)
%
% Work in progress
% This experiment was used to develop the CPLrecontour procedure an to
% see the effect of attached edges, non manifold points and non manifold
% edges. By reading in different STL files is becomes obvious that
% corrupted STL files are a serious problem for any slicer. (Status of:
% 2014-12-10)
%
% exp_2014_12_04
%
CPLremstraight(CPL)- removes points from straight lines in all contours of CPL
CPLremstraight(CPL) % CPLremstraight(CPL) - removes points from straight lines in all contours of CPL
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-05 as class: AUXILIARY PROCEDURES)
%
% =======================================================================
% OBSOLETE (2017-07-13) - USE FAMILY 'CVLremstraight' INSTEAD
% =======================================================================
%
% Splits non-manifold points(not edges), shift the contours to start with
% minx/miny, order from left bottum to right up AND remove points that
% are on a straight line. (Status of: 2014-12-26)
%
% Introduced first in SolidGeometry 2.0
%
% See also: [ CVLremstraight ] ; VLremstraightCVL
%
% NPL=CPLremstraight(CPL)
% === INPUT PARAMETERS ===
% CPL: Original closed polygon list (includes NaN)
% === OUTPUT RESULTS ======
% NPL: CPL list: Splitted, shifted, and ordered list with only two points
% for a straight line
%
% See also: [ CVLremstraight ] ; VLremstraightCVL
%
CPLorder(CPL,smax)- returns an xy ordered and shifted CPL
CPLorder(CPL,smax) % CPLorder(CPL,smax) - returns an xy ordered and shifted CPL
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-05 as class: AUXILIARY PROCEDURES)
%
% All polygons are now orderd from outside to inside, so that they can
% processed one after another.
% They ordered from minx/miny to maxx/maxy or in the opposite way.
% (Status of: 2015-08-16)
%
% NCPL=CPLorder(CPL,[smax])
% === INPUT PARAMETERS ===
% CPL: Closed Polygon List (including NaN)
% smax: max if true, min if false; default is false
% === OUTPUT RESULTS ======
% NCPL: Ordered closed polygon list
%
CPLcircshift(PL,cl)- shifts & closes a PL. First point is [minx miny]
CPLcircshift(PL,cl) % CPLcircshift(PL,cl) - shifts & closes a PL. First point is [minx miny]
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-05 as class: AUXILIARY PROCEDURES)
%
% Attention the length of the NPL can be increased to add the first point
% as last point.
% cl = false => CPL may be longer than PL
% CL = true => CPL is PL if the input argument was PL (Status of:
% 2014-12-26)
%
% NPL=CPLcircshift(PL,[cl])
% === INPUT PARAMETERS ===
% PL: Original PL or CPL
% cl: constant legnth; default is false
% === OUTPUT RESULTS ======
% NPL: Shifted and CPL
%
CPLsplitpoints(CPL)- Splits non manifold points in a CPL
CPLsplitpoints(CPL) % CPLsplitpoints(CPL) - Splits non manifold points in a CPL
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-05 as class: AUXILIARY PROCEDURES)
%
% Sometimes as a result of slicing process, there are non manifold points
% (joint points) of two closed CPLs. This is detected and corrected by
% this procedure. If there are - after a slicing procedure - non manifold
% edges in a plane, somebody made a mistake during the design. Non
% manifold points in a plane can be resolved. Non manifold edge not by
% this procedure.
% Intellectual property: This can be used as copy protection for 3D print
% protection. It is possible visualize but not possible to print. (Status
% of: 2017-04-23)
%
% See also: PLsplitpointsofCPL
%
% NPL=CPLsplitpoints(CPL)
% === INPUT PARAMETERS ===
% CPL: Contour polygon list
% === OUTPUT RESULTS ======
% NPL: Corrected Contour polygon list
%

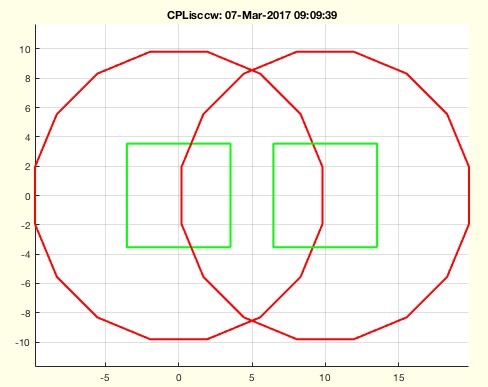

CPLisccw(CPL)- returns index list for CPL direction
CPLisccw(CPL) % CPLisccw(CPL) - returns index list for CPL direction
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-05 as class: ANALYTICAL GEOMETRY)
%
% the same as ~ispolycw (Status of: 2017-05-27)
%
% See also: CPLisccwinout, CPLsortinout, CPLisccwcorrected
%
% [cwi,nani]=CPLisccw(CPL)
% === INPUT PARAMETERS ===
% CPL: CPL
% === OUTPUT RESULTS ======
% cwi: counter-clockwise index
% nani: NAN-indices
%
% EXAMPLE:
% CPLisccw(CPLsample(11))
%
exp_2014_12_05- PUBLISHABLE EXPERIMENT for slicer reconstruction, analyzing non manifold problems
exp_2014_12_05 % exp_2014_12_05 - PUBLISHABLE EXPERIMENT for slicer reconstruction,
% analyzing non manifold problems
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-05 as class: EXPERIMENTS)
%
% Work in progress
% This experiment was used to develop the CPLrecontour procedure an to
% see the effect of attached edges, non manifold points and non manifold
% edges. (Status of: 2014-12-05)
%
% exp_2014_12_05
%
SGtrans(SG,T)- multi transformation modes for a solid geometry
SGtrans(SG,T) % SGtrans(SG,T) - multi transformation modes for a solid geometry
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-03 as class: ANALYTICAL GEOMETRY)
%
% Does currently not support a list of solids.
% Combines SGytrans0, SGtrans1, SGtransP, SGtransR, SGtransT depending on
% the transformation value
% SGtrans(SG,0)
% SGtrans(SG,1)
% SGtrans(SG,[0 0 10]
% SGtrans(SG,[0; 0 ;10])
% SGtrans(SG,rot(pi/3))
% SGtrans(SG,rot(pi/3,pi/2,0))
% SGtrans(SG,TofDPhiH(20,pi/6,10)) (Status of: 2014-12-03)
%
% [SG1,varargout]=SGtrans(SG,T)
% === INPUT PARAMETERS ===
% SG: Solid Geometry
% T: Transformation Value, Vector, or Matrix
% === OUTPUT RESULTS ======
% SG1: Transforms solid geometry
% varargout:
%
SGsample(Nr,T)- returns a solid geometry for sample bodies used for testing and experiments
SGsample(Nr,T) % SGsample(Nr,T) - returns a solid geometry for sample bodies used for testing and experiments
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-03 as class: MODELING PROCEDURES)
%
% there are different solids in different structures that support the
% test of different geometries (Status of: 2017-04-23)
%
% See also: CPLsample, VLsample, PLsample
%
% SG=SGsample([Nr,T])
% === INPUT PARAMETERS ===
% Nr: Nr of sample solid; default is show
% T: Parameter for SGtrans (Value, Vector, Matrix)
% === OUTPUT RESULTS ======
% SG: Solid geometry
%
exp_2014_12_03- PUBLISHABLE EXPERIMENT for VLFL reconstuction
exp_2014_12_03 % exp_2014_12_03 - PUBLISHABLE EXPERIMENT for VLFL reconstuction
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-03 as class: EXPERIMENTS)
%
% Work in progress
% Uses SGsample(12,13,14,15) to generate a solid, slice it a cutting
% plane and calculate the evolving contour (Status of: 2014-12-05)
%
% exp_2014_12_03
%
-

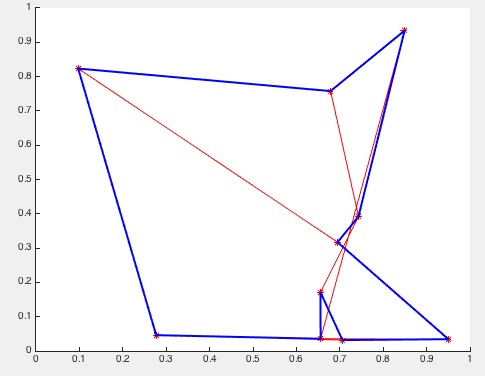

PLrand(n,r,c)- returns a point list with random points
PLrand(n,r,c) % PLrand(n,r,c) - returns a point list with random points
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-02 as class: AUXILIARY PROCEDURES)
%
% mainly r*rand(n,2) but combined with PLsortC (Status of: 2017-01-05)
%
% See also: PLcircle, PLcircseg, PLevolvente, PLgear, PLhelix, PLkidney,
% PLspiral, PLsquare, PLstar
%
% [PL,CPL]=PLrand([n,r,c])
% === INPUT PARAMETERS ===
% n: number of points; default is 10
% r: Radius; default is 10
% c: Center; default is [0 0]
% === OUTPUT RESULTS ======
% PL: Point list nx2 (unsorted)
% CPL: Point list nx2 (sorted as contour), not closed
%
% EXAMPLE: close all;
% CPLplot(PLsortC(PLrand(20,10))); view(0,90); axis equal;
%

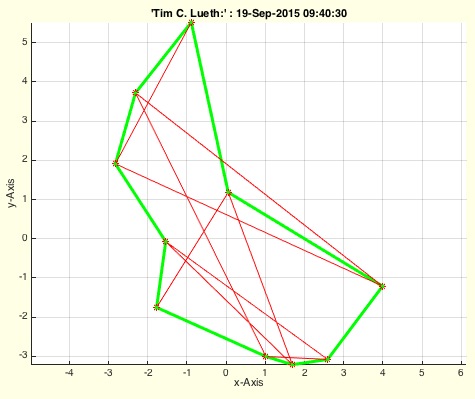

PLsortC(PL,d)- returns a point list that is sorted around its' center
PLsortC(PL,d) % PLsortC(PL,d) - returns a point list that is sorted around its' center
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-02 as class: AUXILIARY PROCEDURES)
%
% Uses VLsortC. All points are part of the resulting list. (Status of:
% 2014-12-02)
%
% [PL,WL,DL]=PLsortC(PL,[d])
% === INPUT PARAMETERS ===
% PL: Original point list
% d: order same angle: 'outer' | 'inner'; default is 'inner'
% === OUTPUT RESULTS ======
% PL: Sorted point list
% WL: Angle list
% DL: Distance list
%
% EXAMPLE: Sort a random point list
% close all;
% for i=1:10; PL(i,:)=[rand rand]; end;
% CPLplot (PL); CPLplot(PLsortC(PL),'b',2); show
%
SGswap(SG)- returns a SG with inverted facets
SGswap(SG) % SGswap(SG) - returns a SG with inverted facets
% (by Tim Lueth, VLFL-Lib, 2014-NOV-30 as class: AUXILIARY PROCEDURES)
%
% similar to FLswap, but for solids (Status of: 2014-11-30)
%
% SG=SGswap(SG)
% === INPUT PARAMETERS ===
% SG: Solid geometry
% === OUTPUT RESULTS ======
% SG: Solid geometry with inverted facets
%
% EXAMPLE: Generation of a hollow ellipsoid
% CPL=PLcircle(30); CPL(:,2)=CPL(:,2)*2;
% SG=SGcat(SGofCPLrot(CPL),SGswap(SGofCPLrot(CPL*0.5)));
% SGplot(SG);
% SGwriteSTL(SG);
%
SGbool3(flag,A,B,thr,tho)- Boolean operators for solid geometries
SGbool3(flag,A,B,thr,tho) % SGbool3(flag,A,B,thr,tho) - Boolean operators for solid geometries
% (by Tim Lueth, VLFL-Lib, 2014-NOV-29 as class: SURFACES)
%
% First usable procedure achieved on 2015-01-10.
% It took several weeks to implement it. (Status of: 2015-01-11)
%
% SGX=SGbool3(flag,A,B,[thr,tho])
% === INPUT PARAMETERS ===
% flag: Operator such as 'A','B','+','x'
% A: Solid A
% B: Solid B
% thr: grid resolution for A and B; default is 1e-5
% tho: grid resolution for the output result; default is 1e-4;
% === OUTPUT RESULTS ======
% SGX: Final resulting geometry
%
SGofCPLrot(CPL,n)- returns a solid geometry from of a z-axis rotated closed polygon list
SGofCPLrot(CPL,n) % SGofCPLrot(CPL,n) - returns a solid geometry from of a z-axis rotated closed polygon list
% (by Tim Lueth, VLFL-Lib, 2014-NOV-29 as class: MODELING PROCEDURES)
%
% Basic modeling procedure such as SGofCPLz. An important feature of this
% procedure is the insertion on contour points that make it possible to
% separate the object easily in z. Nevertheless, if case that embeded
% circles are rotated a remarkable number of new points are inserted at
% the outside contour. (Status of: 2017-03-19)
%
% See also: SGofCPLsphere, SGbeating, SGofCPLz, SGofCPLT
%
% SG=SGofCPLrot(CPL,[n])
% === INPUT PARAMETERS ===
% CPL: Radius-Z List
% n: optional number of edges of the rotated polygon
% === OUTPUT RESULTS ======
% SG: Solid Geometry (SG.VL, SG.FL, SG.CPL)
%
% EXAMPLE: CPL=[0 0; 20 0; 20 10; 0 10; NaN NaN; 1 1; 9 1; 9 9; 1 9; NaN
% NaN; 2 2; 8 2; 8 8; 2 8 ];
% CPL(:,1)=CPL(:,1)+5
% CPL=PLcircle(10);
% CPL=[0 10; 2 8; 0 5; 0 4; 4 1; 0 0];
% A=SGofCPLrot (CPL); SGchecker(A);
% VLFLviewer(A); VLFLplotlight (1,0.5), view(-30,30);
% figure(2); PLELofCPL(A.CPL);
%
VLFLofCPLrot(CPL,n)- returns a solid geometry from of a radius-z list
VLFLofCPLrot(CPL,n) % VLFLofCPLrot(CPL,n) - returns a solid geometry from of a radius-z list
% (by Tim Lueth, VLFL-Lib, 2014-NOV-29 as class: MODELING PROCEDURES)
%
% [VL,FL,CPL]=VLFLofCPLrot(CPL,[n])
% === INPUT PARAMETERS ===
% CPL: Radius-Z List
% n: number of edges of the prismatic cross section
% === OUTPUT RESULTS ======
% VL: Vertex list
% FL: Facet list
% CPL: Resulting contour polygon list
%

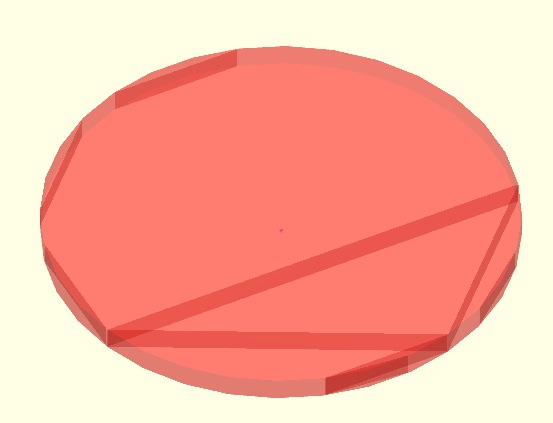

% EXAMPLE: Generating different solids by rotating a contour
% CPL=[0 0; 20 0; 20 10; 0 10; NaN NaN; 1 1; 9 1; 9 9; 1 9; NaN NaN; 2 2;
% 8 2; 8 8; 2 8 ];
% CPL(:,1)=CPL(:,1)+5
% CPL=PLcircle(10);
% CPL=[0 10; 2 8; 0 5; 0 4; 4 1; 0 0];
% [VL,FL,NCPL]=VLFLofCPLrot (CPL);
% VLFLchecker(VL,FL);
% VLFLviewer(VL,FL); VLFLplotlight (1,0.5), view(-30,30); PLELofCPL
% (NCPL); show
%
CPLuniteCPL(CPL)- returns a correct directed closed polygon list from a undirected closed polygon list
CPLuniteCPL(CPL) % CPLuniteCPL(CPL) - returns a correct directed closed polygon list from
% a undirected closed polygon list
% (by Tim Lueth, VLFL-Lib, 2014-NOV-27 as class: ANALYTICAL GEOMETRY)
%
% This procedure returns a corrects ordered (cw/ccw) CPL.
% To get the right order (ccw/cw) for a CPL 3D extrusion, use flip(CPL)
% before.
% A feature is that there are additional points on straight lines, that
% help to separate the contour in y-axis into slices (Status of:
% 2016-01-06)
%
% See also: CPLunite, CPLuniteCPL, CPLunitePLFL
%
% CPL=CPLuniteCPL(CPL)
% === INPUT PARAMETERS ===
% CPL: Closed polygon list (unidirected)
% === OUTPUT RESULTS ======
% CPL: Closed polygon list (correctly) directed cw/ccw
%
% EXAMPLE: Show how the order of polygons can be corrected
% CPL=[0 0; 20 0; 20 10; 0 10; NaN NaN; 1 1; 9 1; 9 9; 1 9; NaN NaN; 2 2;
% 8 2; 8 8; 2 8 ]
% CPL=CPLuniteCPL(CPL);
% CPL=flip(CPL);
% PLELofCPL(CPL);
%
