New in SG-Lib 2.4

Last change of this page: 2017-07-14
SGweight(SG,sw,res)- returns the estimated weight of a solid
SGweight(SG,sw,res) % SGweight(SG,sw,res) - returns the estimated weight of a solid
% (by Tim Lueth, VLFL-Lib, 2015-AUG-26 as class: MECHANICAL PROCEDURES)
%
% Calculated by counting the volume elements that are included by the
% solid body. (Status of: 2015-08-27)
%
% See also: SGweight, SGvolume
%
% W=SGweight(SG,[sw,res])
% === INPUT PARAMETERS ===
% SG: Solid Geoemtry
% sw: specific weight; default is 1.15g/cm^3 (Nylon)
% res: resolution; default is 2x2x2 mm^3
% === OUTPUT RESULTS ======
% W: Estimated weight in gramm
%
TofSGMLez(SG,ez,ai,fe)- returns HT for a mounting face with known ez
TofSGMLez(SG,ez,ai,fe) % TofSGMLez(SG,ez,ai,fe) - returns HT for a mounting face with known ez
% (by Tim Lueth, VLFL-Lib, 2015-AUG-24 as class: ANALYTICAL GEOMETRY)
%
%
% Similar to TofSGML but here, the faces are seleted by the ez-vector
% (Status of: 2017-01-29)
%
% See also: TofSGMLez, TofSGML, TofVLUL, TofVLULez, MLofSG, MLplot
%
% T=TofSGMLez(SG,ez,[ai,fe])
% === INPUT PARAMETERS ===
% SG: Solid Geometry with defined mounting faces ML, MA
% ez: desired ez vector
% ai: order is size; default is 1
% fe: feature edge angle; default is 0.5; used only if ML is not defined
% === OUTPUT RESULTS ======
% T: Transformation matrix [4x4]
%
% EXAMPLE:

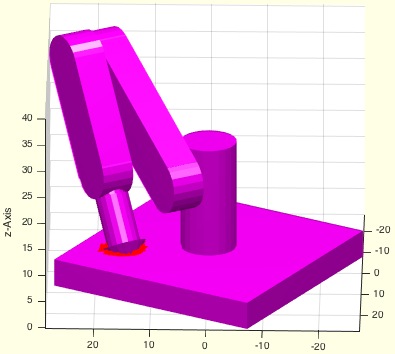

% load AIM_SGrobot
% TofSGMLez(SG3,[1 0 0]);
%

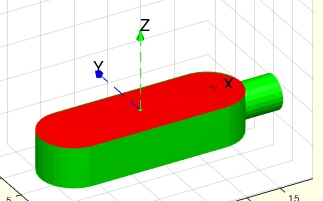

TofSGML(SG,mi,fe)- returns HT for a mounting face with known number
TofSGML(SG,mi,fe) % TofSGML(SG,mi,fe) - returns HT for a mounting face with known number
% (by Tim Lueth, VLFL-Lib, 2015-AUG-24 as class: ANALYTICAL GEOMETRY)
%
%
% Similar to TofSGMLez but here, the faces are seleted by the number
% (Status of: 2017-01-29)
%
% See also: TofSGMLez, TofVLUL, TofVLULez, MLofSG, MLplot
%
% [T,SG]=TofSGML(SG,mi,[fe])
% === INPUT PARAMETERS ===
% SG: Solid Geometry with defined mounting faces ML, MA
% mi: mounting face number
% fe: feature edge angle; default is 0.5; used only if ML is not defined
% === OUTPUT RESULTS ======
% T: Transformation matrix [4x4]
% SG: Solid geometry with defined mounting faces ML, MA
%
% EXAMPLE:
% load AIM_SGrobot
% TofSGML(SG3,2);
%

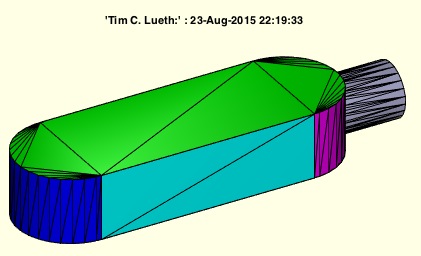

MLplot(SG,mi,fe)- plots the mounting faces of a solid
MLplot(SG,mi,fe) % MLplot(SG,mi,fe) - plots the mounting faces of a solid
% (by Tim Lueth, VLFL-Lib, 2015-AUG-23 as class: SURFACES)
%
% calculates using MFofSG, if not existing already, the mounting faces
% and plots them in different colors (Status of: 2017-01-29)
%
% See also: TofSGMLez, TofSGML, TofSGMLez, MLofSG, SGplatesofSGML
%
% h=MLplot(SG,[mi,fe])
% === INPUT PARAMETERS ===
% SG: Solid Geoemtry
% mi: mounting face index; default is ''
% fe: feature angle; default is 0.5
% === OUTPUT RESULTS ======
% h: handle
%
% EXAMPLE:
% [~,~,SG]=MLofSG(SGsample(5)); MLplot(SG)
%

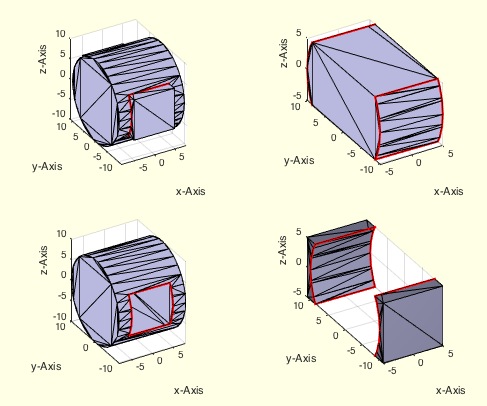

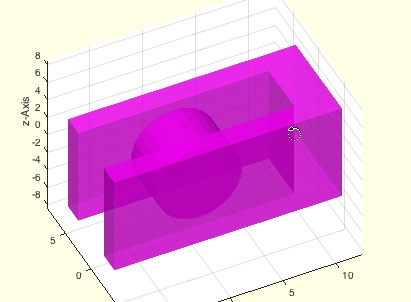

SGimpress (A,B,TA,TB,ai,bi)- impresses solid B into A using mounting faces
SGimpress (A,B,TA,TB,ai,bi) % SGimpress (A,B,TA,TB,ai,bi) - impresses solid B into A using mounting
% faces
% (by Tim Lueth, VLFL-Lib, 2015-AUG-23 as class: SURFACES)
%
% SGimpress([A,B,TA,TB,ai,bi])
% === INPUT PARAMETERS ===
% A: Solid A
% B: Solid B
% TA: Vector or HT-Matrix of A
%
% TB: Vector or HT-Matrix of B
% ai: order index of mounting face of A; default 1 (biggest of this ez)
% bi: order index of mounting face of B; default 1 (biggest of this ez)
%
rotateazimut(hf)- callback func for figure-azimut-rotating by wheel
rotateazimut(hf) % rotateazimut(hf) - callback func for figure-azimut-rotating by wheel
% (by Tim Lueth, VLFL-Lib, 2015-AUG-23 as class: USER INTERFACE)
%
% The procedure can be called as part of set procedure:
% set (hf,'WindowScrollWheelFcn',@figrotateazimut);
% (Status of: 2015-08-23)
%
% rotateazimut(hf)
% === INPUT PARAMETERS ===
% hf: handle to figure
%
% EXAMPLE: set (hf,'WindowScrollWheelFcn',@figrotateazimut);
%

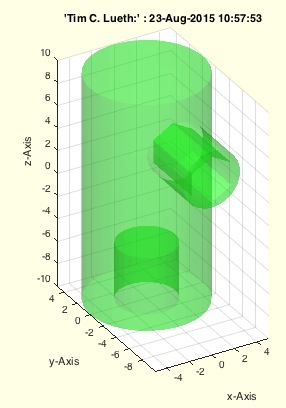

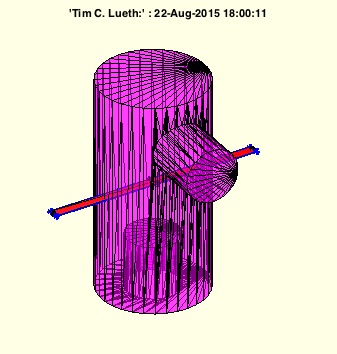

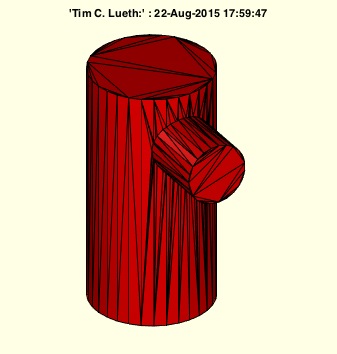

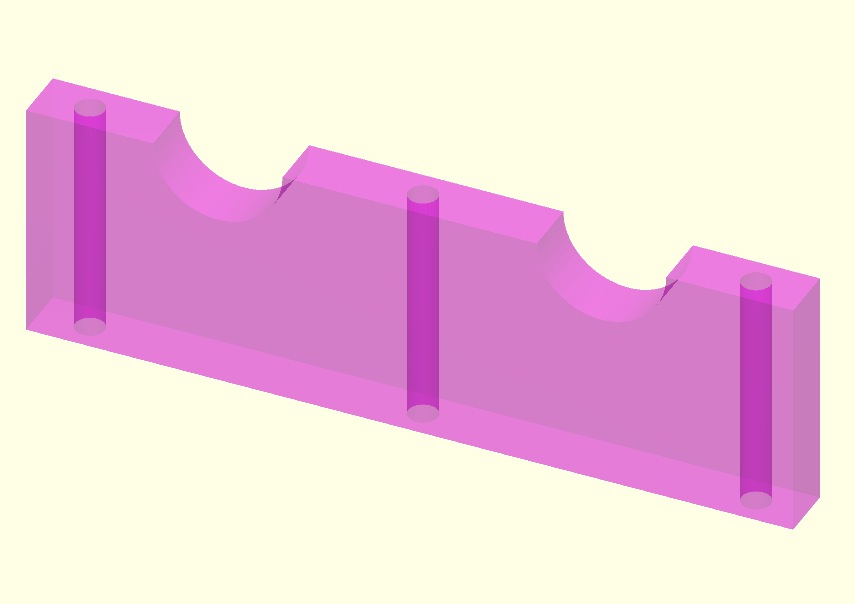

exp_2015_08_22- EXPERIMENT to show simple impression of objects in planes
exp_2015_08_22 %% PUBLISHABLE EXP_2015_08_22 EXPERIMENT TO SHOW SIMPLE IMPRESSION OF OBJECTS IN PLANES
% (by Tim Lueth, VLFL-Lib, 2015-AUG-22 as class: EXPERIMENTS)

%%

% exp_2015_08_22 - EXPERIMENT to show simple impression of objects in
% planes
% (by Tim Lueth, VLFL-Lib, 2015-AUG-22 as class: EXPERIMENTS)
%
% exp_2015_08_22
%
tangentRP(R,p,pc)- returns the two tangential points of a circle
tangentRP(R,p,pc) % tangentRP(R,p,pc) - returns the two tangential points of a circle
% (by MATLAB-CENTRAL, VLFL-Lib, 2015-AUG-22 as class: ANALYTICAL GEOMETRY)
%
% Thanks to Laurens de Smedt for finding it at MATLAB-Central
% (Status of: 2017-01-31)
%
% See also: center3P, center4P, tangente, tangenteRP
%
% [q1,q2]=tangentRP(R,p,[pc])
% === INPUT PARAMETERS ===
% R: Radius of the circle
% p: point to match
% pc: optional center of the circle; default is [0 0]
% === OUTPUT RESULTS ======
% q1: point 1
% q2: point 1
%
% EXAMPLE: tangentRP(10,[20 20])
%
PLFLofVLELdelaunay(VL,EL)- closes a planar surface of VLEL by delaunay
PLFLofVLELdelaunay(VL,EL) % PLFLofVLELdelaunay(VL,EL) - closes a planar surface of VLEL by delaunay
% (by Tim Lueth, VLFL-Lib, 2015-AUG-21 as class: SURFACES)
%
% This procedure can be called also just as FLofVLELdelaunay(VL,EL)
% (Status of: 2015-08-21)
%
% [PL,FL,EL]=PLFLofVLELdelaunay(VL,EL)
% === INPUT PARAMETERS ===
% VL: Vertex list [nx3]
% EL: Edge consraints
% === OUTPUT RESULTS ======
% PL: Point List
% FL: Tesselated facet list
% EL: Same Edge List
%

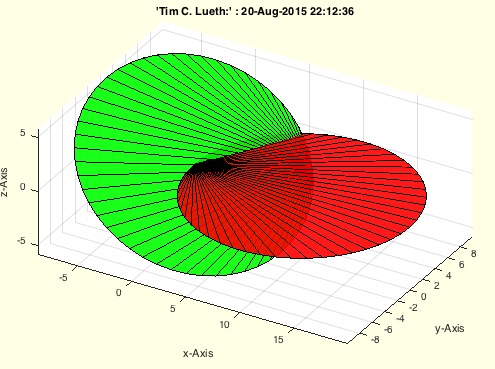

PLofVLFL(VL,FL,fi)- returns the 2D representation for a planar VLFL
PLofVLFL(VL,FL,fi) % PLofVLFL(VL,FL,fi) - returns the 2D representation for a planar VLFL
% (by Tim Lueth, VLFL-Lib, 2015-AUG-20 as class: SURFACES)
%
% This procedure analyzes generates a HT-Matrix by the first point of the
% first facet, the ez-vector of the surface, and the longest distance to
% another point of the facets as ex-axis. (Status of: 2015-08-20)
%
% [PL,T,c,d]=PLofVLFL(VL,FL,[fi])
% === INPUT PARAMETERS ===
% VL: Vertex list [nx3]
% FL: Facet list of a planar surface [nx3]
% fi: selected indices; default is all
% === OUTPUT RESULTS ======
% PL: Point list [nx2]
% T: Transformation matrix
% c: index list to transform PL indices into VL indices
% d: index list to transform VL indices into PL indices
%
% EXAMPLE: FL=FLofn(50);
% VL=VLtrans(PLcircle(10,50),rotdeg(20,30,40));
% PLofVLFL(VL,FL(30:40,:));
% [PL,T,c,d]=PLofVLFL(VL,FL(30:40,:)); c, d(FL(30:40,:))
%

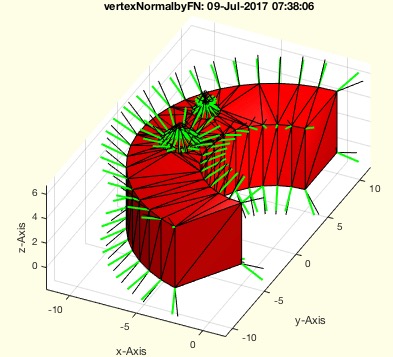

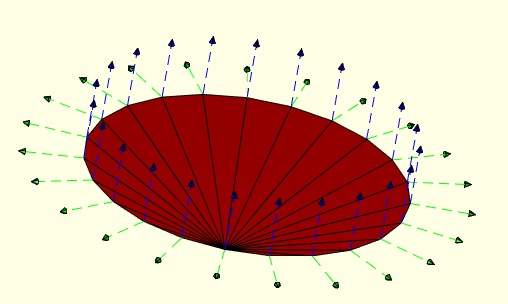

vertexNormalbyFN(TR3)- calculates the vertex normals based on the facet normals
vertexNormalbyFN(TR3) % vertexNormalbyFN(TR3) - calculates the vertex normals based on the facet normals
% (by Tim Lueth, VLFL-Lib, 2015-AUG-21 as class: SURFACES)
%
% This fnctn is sometimes required to improve the result of MATLAB's
% vertexNormal fnctn. It is about 40 times slower (Status of: 2017-07-08)
%
% Introduced first in SolidGeometry 2.4
%
% See also: vertexNormal
%
% [NNL,NL]=vertexNormalbyFN(TR3)
% === INPUT PARAMETERS ===
% TR3: triangulation
% === OUTPUT RESULTS ======
% NNL: Normal vector list
% NL: vector sum of the face norms attached to the vertex
%
% EXAMPLE:
% vertexNormalbyFN(SGbox([30,20,10]))
% vertexNormalbyFN(SGsample(25))
%
% See also: vertexNormal
%
incenterVLFL(VL,FL)- returns the center of a surface and of all facets
incenterVLFL(VL,FL) % incenterVLFL(VL,FL) - returns the center of a surface and of all facets
% (by Tim Lueth, VLFL-Lib, 2015-AUG-21 as class: SURFACES)
%
% [CVL,SCV]=incenterVLFL(VL,FL)
% === INPUT PARAMETERS ===
% VL: Vertex list [nx2] or [nx3]
% FL: Facet list
% === OUTPUT RESULTS ======
% CVL: Center Vertex List
% SCV: Surface Center Vertex
%
PLofVL(VL)- Converts a planer VL[nx3] into a PL [nx2]
PLofVL(VL) % PLofVL(VL) - Converts a planer VL[nx3] into a PL [nx2]
% (by Tim Lueth, VLFL-Lib, 2015-AUG-21 as class: AUXILIARY PROCEDURES)
%
% Required only for procedure parameters (Status of: 2015-08-21)
%
% [PL,T]=PLofVL(VL)
% === INPUT PARAMETERS ===
% VL: Vertex list [nx3]
% === OUTPUT RESULTS ======
% PL: Point list [nx2]
% T: Transformation matrix for transformation PL->VL
%
% EXAMPLE:
% PLofVL(VLtrans(PLcircle(10,13,[],8),rotdeg(90,90,90)));
%
exp_2015_08_20b (SG,k)- EXPERIMENT just for testing retesselation by ULofSG
exp_2015_08_20b (SG,k) % exp_2015_08_20b (SG,k) - EXPERIMENT just for testing retesselation by
% ULofSG
% (by Tim Lueth, VLFL-Lib, 2015-AUG-20 as class: EXPERIMENTS)
%
% exp_2015_08_20b(SG,k)
% === INPUT PARAMETERS ===
% SG: Solid Geometry
% k: index for surface retesselation
%
% EXAMPLE: load AIM_SGrobot
% exp_2015_08_20c(SG1)
%

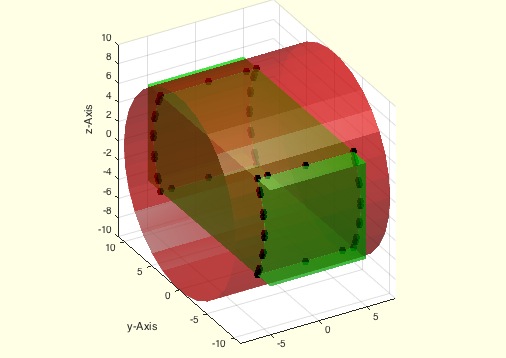

exp_2015_08_20c(SG,k)- EXPERIMENT just for retesselation by ULofSG
exp_2015_08_20c(SG,k) % exp_2015_08_20c(SG,k) - EXPERIMENT just for retesselation by ULofSG
% (by Tim Lueth, VLFL-Lib, 2015-AUG-20 as class: EXPERIMENTS)
%
% NSG=exp_2015_08_20c(SG,k)
% === INPUT PARAMETERS ===
% SG: Solid Geometry
% k: index for surface retesselation
% === OUTPUT RESULTS ======
% NSG: New Solid
%
% EXAMPLE: load AIM_SGrobot
% exp_2015_08_20c(SG1)
%
SGshort(SG,thr,sil)- returns a new SG with may be shorter VL and FL
SGshort(SG,thr,sil) % SGshort(SG,thr,sil) - returns a new SG with may be shorter VL and FL
% (by Tim Lueth, VLFL-Lib, 2015-AUG-20 as class: SURFACES)
%
% Similar to VLFLselect or VLELselect. The fnctn makes it impossible to
% separate facets later. Be careful when using it. Do not use it if you
% want to modify the VL or FL manually later. It is an optimization fnctn
% used in SGgrow.
% using the input argument 'sil', it is possible to hide the message on
% removed vertices (Status of: 2017-02-13)
%
% [SG,n]=SGshort(SG,[thr,sil])
% === INPUT PARAMETERS ===
% SG: Solid Geoemtry
% thr: threshold for vertex fusion; default is 1e-12
% sil: silence; default is false
% === OUTPUT RESULTS ======
% SG: SG
% n: doubled an removed vertices
%

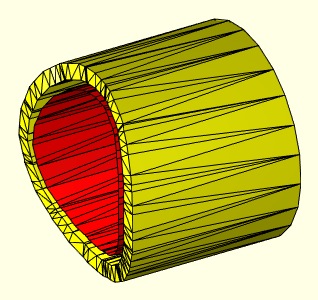

SGcontourtube(CPL,VL,VLO)- extrudes a CPL along a path given as CVL
SGcontourtube(CPL,VL,VLO) % SGcontourtube(CPL,VL,VLO) - extrudes a CPL along a path given as CVL
% (by Tim Lueth, VLFL-Lib, 2015-AUG-19 as class: SURFACES)
%
% =======================================================================
% OBSOLETE (2017-07-09) - USE FAMILY 'SGofCPLCVLR' INSTEAD
% =======================================================================
%
% Powerful procedure to extrude PLs [nx2] anlog a path (Status of:
% 2017-07-09)
%
% Introduced first in SolidGeometry 2.4
%
% See also: [ SGofCPLCVLR ] ; SGofCPLCVLR, RLofEulerInterpolation,
% VLinsertEulerSteps, VLradialEdges, TofPez
%
% [SG,FLS,FLE,FLW,TS,TE]=SGcontourtube(CPL,VL,VLO)
% === INPUT PARAMETERS ===
% CPL: Closed point list [nx2]
% VL: Vertex list [nx3]
% VLO: Second vertex list [nx3]
% === OUTPUT RESULTS ======
% SG: Solid geometry
% FLS: FL of starting surface
% FLE: FL of ending surface
% FLW: FL of the wall
% TS: Starting Frame
% TE: End Frame
%
% EXAMPLE:
% VL=VLhelix(40,100,3*pi); VLO=[VL(:,1:2)*1.1 VL(:,3)];
% SGcontourtube(PLcircle(10),VL,VLO)
%
% See also: [ SGofCPLCVLR ] ; SGofCPLCVLR, RLofEulerInterpolation,
% VLinsertEulerSteps, VLradialEdges, TofPez
%

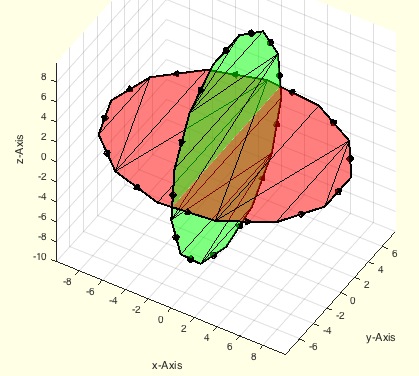

VLtransN(VLO,FLO,s,d)- returns a relative to normal vectors transformed vertex list
VLtransN(VLO,FLO,s,d) % VLtransN(VLO,FLO,s,d) - returns a relative to normal vectors transformed vertex list
% (by Tim Lueth, VLFL-Lib, 2015-AUG-19 as class: SURFACES)
%
% See also: VLtransT, VLtransP, VLtrans1, VLtrans0, VLtransR, VLtransT,
% VLtrans
%
% [VL,EL,EOL,FL,VNL]=VLtransN(VLO,FLO,[s,d])
% === INPUT PARAMETERS ===
% VLO: Vertex list of a planar surface
% FLO: Facet list of a planar surface
% s: shrink factor
% d: distance factor
% === OUTPUT RESULTS ======
% VL: Vertex list [nx3]
% EL: Edge list [nx2]
% EOL: Edge orthogonal list [nx3]
% FL: Facet list [nx3]
% VNL: Vertex normal list [nx3]
%

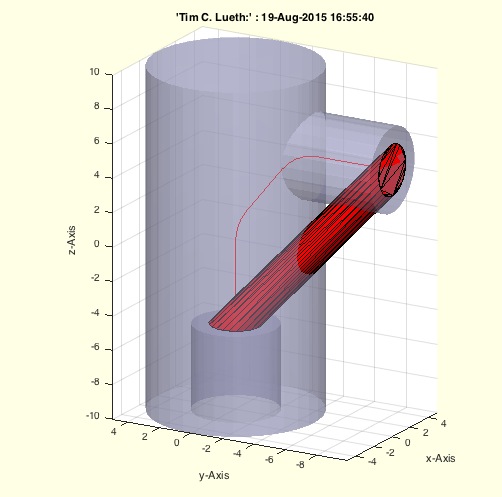

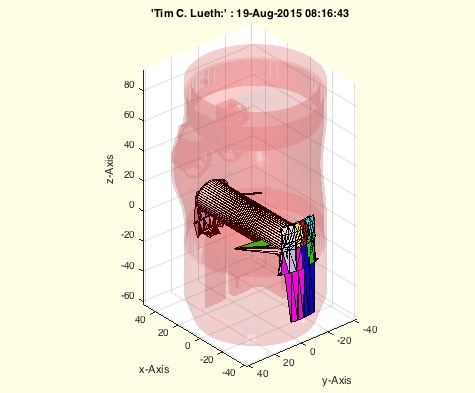

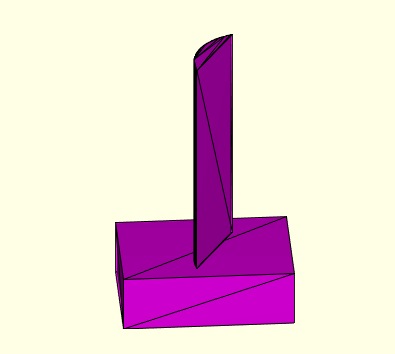

exp_2015_08_20 (SG)- EXPERIMENT to connect two surfaces by a small tube
exp_2015_08_20 (SG) % exp_2015_08_20 (SG) - EXPERIMENT to connect two surfaces by a small tube
% (by Tim Lueth, VLFL-Lib, 2015-AUG-19 as class: EXPERIMENTS)
%
% exp_2015_08_20(SG)
% === INPUT PARAMETERS ===
% SG:
%
% EXAMPLE: load AIM_SGrobot
% exp_2015_08_20(SG1)
%
MLofSG(SG,fi,fe,amin)- calculates of the mounting face list of the solid
MLofSG(SG,fi,fe,amin) % MLofSG(SG,fi,fe,amin) - calculates of the mounting face list of the solid
% (by Tim Lueth, VLFL-Lib, 2015-AUG-19 as class: SURFACES)
%
% MLofSG uses TR3mountingfaces to calculate the desired union faces.
% Therefore, it is able to handel spherical faces too. If only planar
% faces are allowed (i.e. fe=0) , the fnctn is up to 10 to 25 times
% faster. The slower plotting if nargout=0 by drawnow slows down but
% allows user interruption!
% ML contains for all faces of FL, the index of the mounting face
% The first column of MA contains the mounting face index Ai(:,1)
% The second column of MA contains the area of the union surface Ai(:,2)
% the 3rd-5th column of MA contains the normal vector length Ai(:,3:5).
% The normal vector was calculated by the sum of all normal vectors
% divided by the number of faces, therefor for spherical mounting faces,
% the norm of Ai(i, 3:5) is not 1 but smaller. Use
% [a,b]=VLnorm(MA(:,3:5)) to find the non planar surfaces. In this case b
% is smaller than 0.
% (Status of: 2017-01-29)
%
% See also: TofSGMLez, TofSGML, TofSGMLez, MLplot, SGplatesofSGML
%
% [ML,MA,SG]=MLofSG(SG,[fi,fe,amin])
% === INPUT PARAMETERS ===
% SG: Solid Geometry
% fi: facet index or empty
% fe: feature edge angle (0.3) is default
% amin: minimal facet are to consider as start point;default is 0
% === OUTPUT RESULTS ======
% ML: Mounting face index list of FL (nx1), n=length(FL)
% MA: Array [nx5]= [mounting area index(1) area (1) normal vector(3)]
% SG: SG.ML und SG.MA added using ML and MA if fi=[];
%
% EXAMPLE: load AIM_SGrobot;
% SG=SG1, fe=0.5, MLofSG(SG,[],fe);
% [ML,MA]=MLofSG(SG,[],fe), MA(:,[1 3 4 5]), [a,b]=VLnorm(MA(:,3:5))
% SG.FL(ML==4,:), % return the facets that belong to union 4
% SG.FL(ML~=4,:), % return the facets that do not belong to union 4
%
OcTree(pts,)-
OcTree(pts,)
exp_2015_08_19(A,B,oct)- EXPERIMENT that shows an octree separation
exp_2015_08_19(A,B,oct) % exp_2015_08_19(A,B,oct) - EXPERIMENT that shows an octree separation
% (by Tim Lueth, VLFL-Lib, 2015-AUG-19 as class: EXPERIMENTS)
%
% exp_2015_08_19(A,B,[oct])
% === INPUT PARAMETERS ===
% A: Solid A
% B: Solid B
% oct: octree size ([oct x oct x oct]); default is 40
%
% EXAMPLE:
% exp_2015_08_19([],[])
%
octMesh(facesA,pointsA,facesB,pointsB,octs)- Splits two triangular meshes into a single system of octree spatial bins
octMesh(facesA,pointsA,facesB,pointsB,octs)

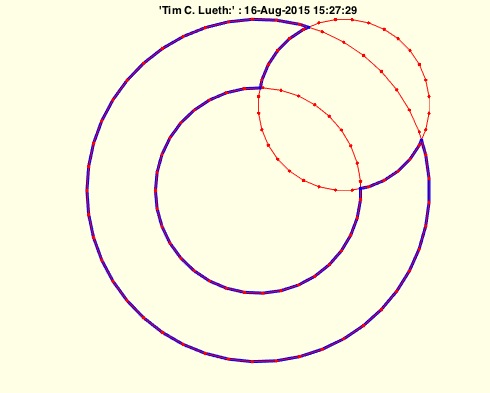

CPLunite(CPL,ord)- returns a CPL that has no crossing lines anymore
CPLunite(CPL,ord) % CPLunite(CPL,ord) - returns a CPL that has no crossing lines anymore
% (by Tim Lueth, VLFL-Lib, 2015-AUG-16 as class: CLOSED POLYGON LISTS)
%
% By analyzing the order (clockwise or counterclockwise) of all polygons
% a addition or substraction is executed. Therefor the final CPL has no
% crossings anymore.
% ATTENTION: THERE IS A DIFFERENT CPLunitCPL that does not the same
% (Status of: 2015-08-16)
%
% See also: CPLunite, CPLuniteCPL, CPLunitePLFL
%
% CPLA=CPLunite(CPL,[ord])
% === INPUT PARAMETERS ===
% CPL: CPL including crossing lines
% ord: true if CPLorder is used first; default is false
% === OUTPUT RESULTS ======
% CPLA: Processed CPL
%
% EXAMPLE:
% CPLunite([PLcircle(10);NaN NaN;flipud(PLtrans(PLcircle(5),[5 5]))]);
% CPLunite([PLcircle(10);NaN NaN;PLtrans(PLcircle(5),[5 5])]);
% CPLunite([flipud(PLcircle(6));NaN NaN;PLcircle(10);NaN
% NaN;flipud(PLtrans(PLcircle(5),[5 5]))])
% CPLunite([flipud(PLcircle(6));NaN NaN;PLcircle(10);NaN
% NaN;PLtrans(PLcircle(5),[5 5])])
%
VLELofTR(TR)- returns the edge constraints of a triangulation
VLELofTR(TR) % VLELofTR(TR) - returns the edge constraints of a triangulation
% (by Tim Lueth, VLFL-Lib, 2015-AUG-15 as class: TETRAHEDRONS)
%
% returns the edge constraints of a triangulation (Status of: 2015-08-15)
%
% [VL,EL,FL]=VLELofTR(TR)
% === INPUT PARAMETERS ===
% TR: Triangulation (nx4 or nx3 or nx2)
% === OUTPUT RESULTS ======
% VL: Vertex List (Point List)
% EL: Facet List (Constraints)
% FL: Facet List (ConnectivityList or freeBoundary)
%
% EXAMPLE:
% [VL,FL]=VLELofTR(exp_2014_12_23 (SGsample(16))); close all; VLFLfigure;
% view(-30,30); VLFLplots(VL,FL);
%
exp_2015_08_09- experiment to show how to create kinematic chains by cicking
exp_2015_08_09 % exp_2015_08_09 - experiment to show how to create kinematic chains by
% cicking
% (by Tim Lueth, VLFL-Lib, 2015-AUG-09 as class: EXPERIMENTS)
%
% exp_2015_08_09
%
KMofSGs(SGs,dphi,thr)- returns a Kinematic model for a chain of solids
KMofSGs(SGs,dphi,thr) % KMofSGs(SGs,dphi,thr) - returns a Kinematic model for a chain of solids
% (by Tim Lueth, VLFL-Lib, 2015-AUG-09 as class: KINEMATICS AND FRAMES)
%
% The solids are given as cell list: {SG1,SG2,SG3...}
% The procedure also performs a collision test to give a feedback on the
% geometry. For this purpose all facets of the analyzed links are
% shrinked by thr=0.1. and compared with all surfaces of the links in the
% chain before.
%
%
% At a later stage, it is absolutely necessary to integrate the chains
% into the model
% KM.m=models (i.e. current KM)
% KM.c=chains
% (Status of: 2015-08-09)
%
% [KM,chain]=KMofSGs(SGs,[dphi,thr])
% === INPUT PARAMETERS ===
% SGs: Cell list of solids: {SG1,SG2,SG3...}
% dphi: angle degree (default is 105 degree) for all joints
% thr: threshold for collision test; default is 0.1 (==2*0.05)
% === OUTPUT RESULTS ======
% KM: Kinematic Model including a simple chain
% chain: generated chain of frames
%

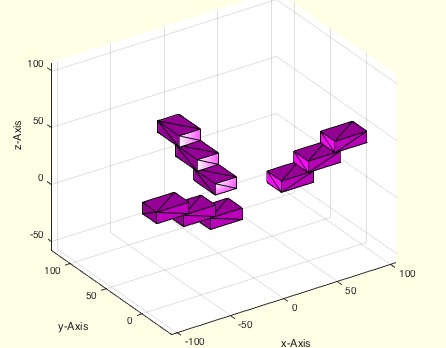

% EXAMPLE: Create a strange robot
% KMofSGs ({SG0,SG1,SG2,SG2,SG2,SG3,SG2,SG4});
%
SGfixerrors(A,thr)- removes typical errors after surface manipulation
SGfixerrors(A,thr) % SGfixerrors(A,thr) - removes typical errors after surface manipulation
% (by Tim Lueth, VLFL-Lib, 2015-AUG-08 as class: SURFACES)
%
% Even after the use of matlab triangulation procedures, there are
% sometimes facets that are of edge type. Those errors are removed with
% this procedure.
% Used in exp_2015_08_08 (Status of: 2015-08-08)
%
% A=SGfixerrors(A,[thr])
% === INPUT PARAMETERS ===
% A: Solid A
% thr: threshold for VLFLshort2; default is 1e-20;
% === OUTPUT RESULTS ======
% A: Solid with removed errors
%
exp_2015_08_08- PUBLISHABLE EXPERIMENT showing the creation of boolean operations
exp_2015_08_08 %% exp_2015_08_08 - PUBLISHABLE EXPERIMENT showing the creation of boolean operations
% (by Tim Lueth, VLFL-Lib, 2015-AUG-08 as class: EXPERIMENTS)
%%
% exp_2015_08_08
%

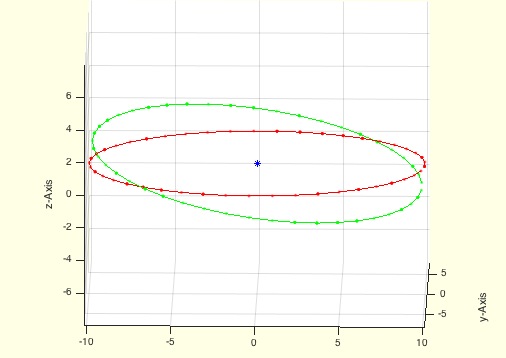

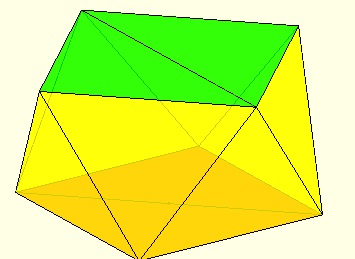

SGofVLtrans(VL,T,TS,comp)- returns a convex solid for a transformed vertex list
SGofVLtrans(VL,T,TS,comp) % SGofVLtrans(VL,T,TS,comp) - returns a convex solid for a transformed
% vertex list
% (by Tim Lueth, VLFL-Lib, 2015-AUG-08 as class: SURFACES)
%
% Useful state of the art procedure to move/rotate a base contour first,
% the create a convex delaunay solid, a returns it with index lists for
% the individual surfaces (uses SGofVLdelaunay).
% Translation support: dz, t-vector, 3x3 matrix, 3x4, 4x4 matrices
% (Status of: 2015-08-08)
%
% [SG,ViL,FiL,FNL,FoL]=SGofVLtrans(VL,T,[TS,comp])
% === INPUT PARAMETERS ===
% VL: Vertex list (nx3) or (nx2)
% T: required translation; if scalar the t==>t=[0 0 t];
% TS: transformation of the solid afterwards; default is [];
% comp: compensates the contraction for phi-x or phi-y; default is false
% === OUTPUT RESULTS ======
% SG: Solid geoemtry
% ViL: Vertex index list for the surface
% FiL: Facet index list for the base and tranformed contour
% FNL: facet normal list for the base and transformed contour
% FoL: Facet index list for the outside shell of the solid
%
% EXAMPLE:
% SGofVLtrans(PLcircle(10,4),[rotdeg(0,0,45),[0 ;0 ;40]]) % rotz-45 and
% t=40
% SGofVLtrans(PLcircle(10,4),-30); % z=-30
%
VLtrans(VLA,T)- return similar to PLtrans or SGtrans a transformed VL
VLtrans(VLA,T) % VLtrans(VLA,T) - return similar to PLtrans or SGtrans a transformed VL
% (by Tim Lueth, VLFL-Lib, 2015-AUG-08 as class: AUXILIARY PROCEDURES)
%
% Usage of T
% 0 Center around origin
% 1 Only 1st quadrant
% [nx3] Translation vector
% [3x3] Rotation matrix
% [3x4] Rotation plus translation matrix
% [4x4] Fully homogenous transformation matrix (Status of: 2017-01-29)
%
% See also: VLtransT, VLtransP, VLtrans1, VLtrans0, VLtransR, VLtransT,
% VLtransN
%
% VL=VLtrans(VLA,T)
% === INPUT PARAMETERS ===
% VLA: Vertex list
% T: Transformation vector
% === OUTPUT RESULTS ======
% VL: tranformed vertex list
%

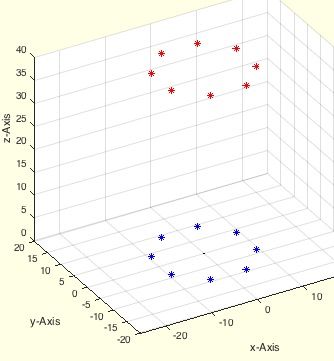

% EXAMPLE: close all; SGfigure; view(-30,30)
% VLtrans(VLaddz(PLcircle(10,8)),[0 0 40])
%

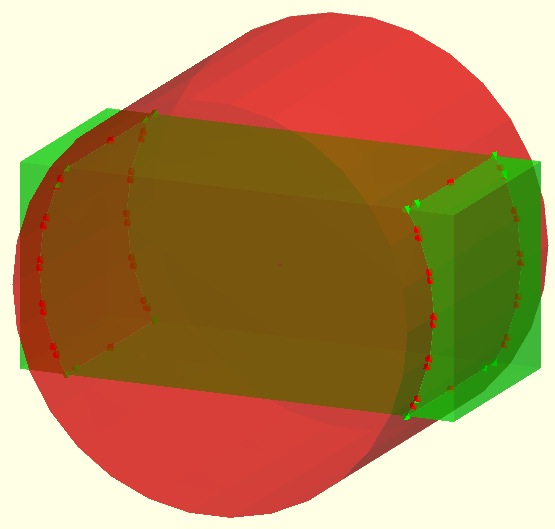

VLcrossingSG(SGA,SGB)- returns crossing points of two solid geometries
VLcrossingSG(SGA,SGB) % VLcrossingSG(SGA,SGB) - returns crossing points of two solid geometries
% (by MATLAB-CENTRAL, VLFL-Lib, 2015-AUG-08 as class: SURFACES)
%
% Extreme fast, powerful, and useful fnctn
% Supports also cell list of Solids (Status of: 2017-01-02)
%
% See also: mesh2mesh, VLFLinpolyhedron, BBiscollofVL, outboundingbox,
% SGisInterior, crossingfacets2VLFL
%
% VL=VLcrossingSG(SGA,SGB)
% === INPUT PARAMETERS ===
% SGA: Solid A or cell list of solids
% SGB: Solid B or cell list of solids
% === OUTPUT RESULTS ======
% VL: Vertex list of all crossing point
%

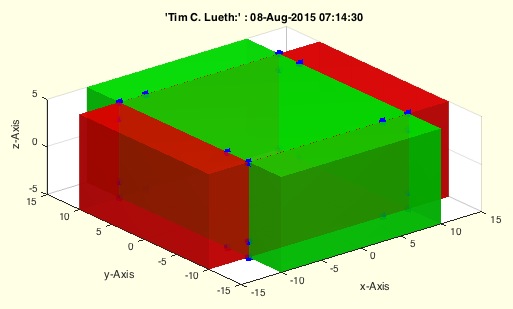

% EXAMPLE: Crossing points of 2 boxes
% A=SGbox([30,20,10]);
% VLcrossingSG(A,SGtrans(A,rotdeg(90)));
%
mesh2mesh(facesInA,pointsInA,facesInB,pointsInB)- returns the crossing points of 2 meshes
mesh2mesh(facesInA,pointsInA,facesInB,pointsInB) % mesh2mesh(facesInA,pointsInA,facesInB,pointsInB) - returns the crossing points of 2 meshes
% (by Seven and Thomas, VLFL-Lib, 2015-AUG-07 as class: SURFACES)
%
% See also: VLFLinpolyhedron, BBiscollofVL, outboundingbox, SGisInterior,
% VLcrossingSG, crossingfacets2VLFL
%
% [trace]=mesh2mesh(facesInA,pointsInA,facesInB,pointsInB)
% === INPUT PARAMETERS ===
% facesInA:
% pointsInA:
% facesInB:
% pointsInB:
% === OUTPUT RESULTS ======
% [trace]:
%

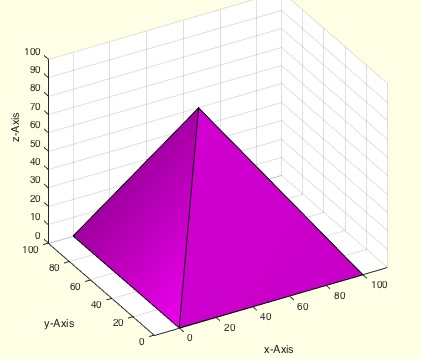

FLfreeboundaryTR4FL(TR4FL)- returns the freeBoundary facets of a tetrahedron
FLfreeboundaryTR4FL(TR4FL) % FLfreeboundaryTR4FL(TR4FL) - returns the freeBoundary facets of a
% tetrahedron
% (by Tim Lueth, VLFL-Lib, 2015-AUG-07 as class: TETRAHEDRONS)
%
% This procedure is tricky to use. Use only if you complete understand
% what you want to do.
%
% This procedure processes a FL list that contains all surface facets of
% a tetrahedron delaunay triangulation (ConnectivityList), created for
% instance by
% FL=[TL(:,[2 3 4]); TL(:,[2 4 1]); TL(:,[4 3 1]); TL(:,[2 1 3])].
% It analyzes which surface has no attached corresponding facet. Those
% have to be the outside facets of the tetrahedron delaunay
% triangulation, i.e. the freeBoundary.
%
% There exist in Matlab already a method freeBoundary for a tetrahedron
% triangulation (nx4) which returns a facet list. There exist also a
% method freeBoundary for a triangle triangulation (nx3) which returns an
% edge list.
%
% (Status of: 2015-08-07)
%
% fb=FLfreeboundaryTR4FL(TR4FL)
% === INPUT PARAMETERS ===
% TR4FL: Facet List of a tetrahedron triangulation (FLofTL)
% === OUTPUT RESULTS ======
% fb: outside, free boundary facet index list
%
% EXAMPLE:
% TR4=delaunayTriangulation([0 0 0;100 0 0; 0 100 0; 25 25 100]);
% SGfigure; TRplot(TR4)
% FL=FLfreeboundaryTR4FL(FLofTL(TR4.ConnectivityList))
%

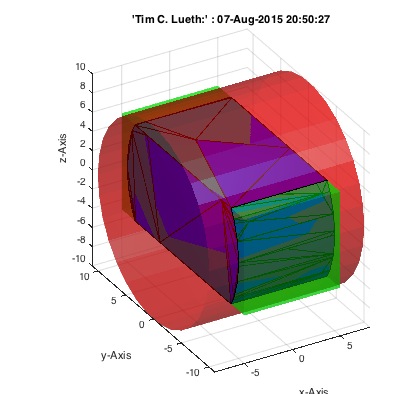

exp_2015_08_07- EXPERIMENT To XOR two solids by delaunay triangulation including crossing points
exp_2015_08_07 %% PUBLISHABLE EXP_2015_08_07 EXPERIMENT TO XOR TWO SOLIDS BY DELAUNAY TRIANGULATION INCLUDING CROSSING POINTS
% (by Tim Lueth, VLFL-Lib, 2015-AUG-07 as class: EXPERIMENTS)

%%

% exp_2015_08_07 - EXPERIMENT To XOR two solids by delaunay triangulation
% including crossing points
% (by Tim Lueth, VLFL-Lib, 2015-AUG-07 as class: EXPERIMENTS)
%
% exp_2015_08_07
%
exp_2015_08_06-
exp_2015_08_06 % exp_2015_08_06 -
% (by Tim Lueth, VLFL-Lib, 2015-AUG-07 as class: EXPERIMENTS)
%
% exp_2015_08_06
%

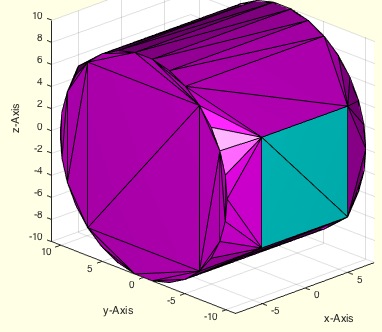

exp_2015_08_05- Experiment for understanding the creation of convex solids from border lines
exp_2015_08_05 %% PUBLISHABLE EXP_2015_08_05 EXPERIMENT FOR UNDERSTANDING THE CREATION OF CONVEX SOLIDS FROM BORDER LINES

% (by Tim Lueth, VLFL-Lib, 2015-AUG-21 as class: EXPERIMENTS)

%%

% exp_2015_08_05 - Experiment for understanding the creation of convex
% solids from border lines
%
% (by Tim Lueth, VLFL-Lib, 2015-AUG-21 as class: EXPERIMENTS)
%
% [NFL,VL]=exp_2015_08_05
% === OUTPUT RESULTS ======
% NFL:
% VL:
%

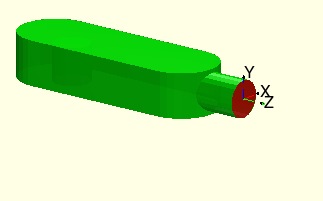

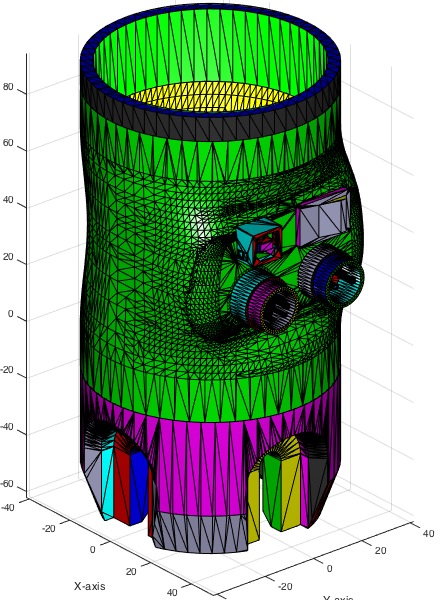

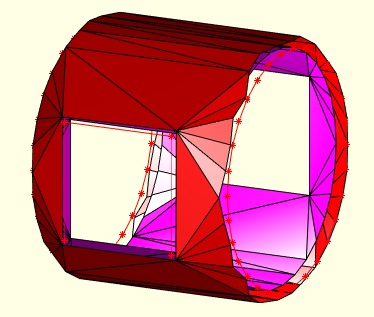

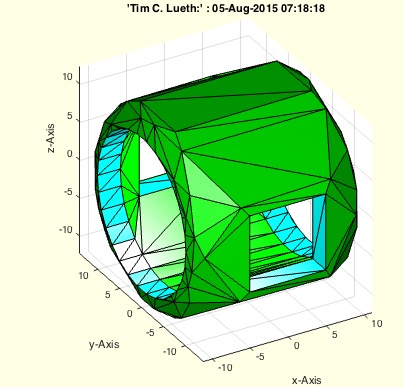

exp_2015_08_04- Experiment to generate tube connectors
exp_2015_08_04 %% PUBLISHABLE EXP_2015_08_04 EXPERIMENT TO GENERATE TUBE CONNECTORS
% (by Tim Lueth, VLFL-Lib, 2015-AUG-05 as class: EXPERIMENTS)

%%

% exp_2015_08_04 - Experiment to generate tube connectors
% (by Tim Lueth, VLFL-Lib, 2015-AUG-05 as class: EXPERIMENTS)
%
% exp_2015_08_04
%

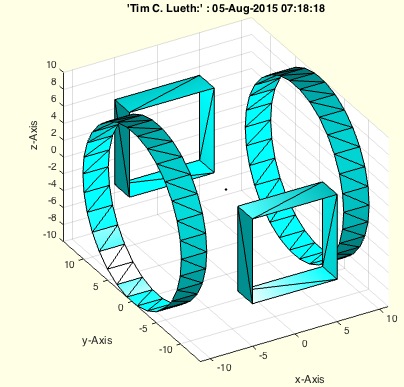

FLcontourwallFLn(FLA,FLB,n)- returns a simple wall contour between the boundaries of 2 identical surfaces
FLcontourwallFLn(FLA,FLB,n) % FLcontourwallFLn(FLA,FLB,n) - returns a simple wall contour between the
% boundaries of 2 identical surfaces
% (by Tim Lueth, VLFL-Lib, 2015-AUG-04 as class: SURFACES)
%
% FLA and FLB are planar open surfaces. The border line (freeBoundary ist
% detected for of them).
%
% The use of the procedure is shown in exp_2015_08_04 to create tunnels
% between the openings of an inner and outer shell. (Status of:
% 2015-08-05)
%
% FLW=FLcontourwallFLn(FLA,FLB,n)
% === INPUT PARAMETERS ===
% FLA: Facet list describing opening A
% FLB: Facet list describing opening B
% n: difference number between vertices
% === OUTPUT RESULTS ======
% FLW: Facet List of the wall contour
%

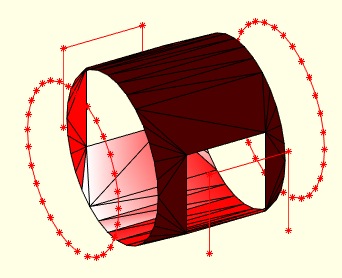

SGofVLdelaunay(CVL)- returns a convex delaunay triangulation
SGofVLdelaunay(CVL) % SGofVLdelaunay(CVL) - returns a convex delaunay triangulation
% (by Tim Lueth, VLFL-Lib, 2015-AUG-03 as class: SURFACES)
%
% Based on a cell list of individual vertex list, each is describing the
% border/freeBoundary of a planar surface, a delaunay triangulation is
% calculated. The tetrahedron triangulation is converted into a surface
% triangualtion. A cell list describes the indices of the vertices and
% the facet indices within the surface
%
% At a later stage in makes sense to reorder the facets by [FoL;FiL]
% (Status of: 2015-08-04)
%
% [SG,ViL,FiL,FNL,FoL]=SGofVLdelaunay(CVL)
% === INPUT PARAMETERS ===
% CVL: Cell list of Contour Vertex Lists {VL1,VL2,VL3}
% === OUTPUT RESULTS ======
% SG: Solid Geometry (VL=[VL1;VL2,...])
% ViL: Vertex index list (n x 2) wit start and end index
% FiL: Cells with Facet index Lists
% FNL: Facet normal vector list
% FoL: Facet index list for the surface without the enclosed ones
%
% EXAMPLE: A=SGbox([30,10,10]);
% B=SGbox([10,30,10]);
% [VL,FL,c,d]=SGofVLdelaunay({A.VL(1:end/2,:),A.VL(1+end/2:end,:)
% ,B.VL(1:end/2,:),B.VL(1+end/2:end,:)});
% VLFLplots(VL,FL,'m');
% VLFLplots(VL,FL(d{4},:),'c');
%
%
exp_2015_08_03-
exp_2015_08_03 % exp_2015_08_03 -
% (by Tim Lueth, VLFL-Lib, 2015-AUG-03 as class: EXPERIMENTS)
%
% exp_2015_08_03
%

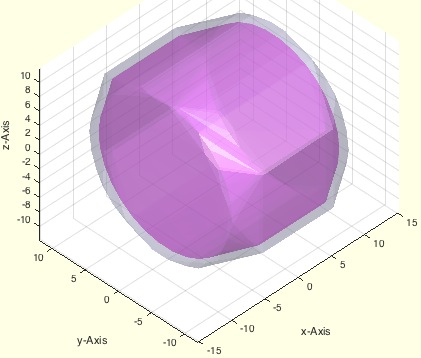

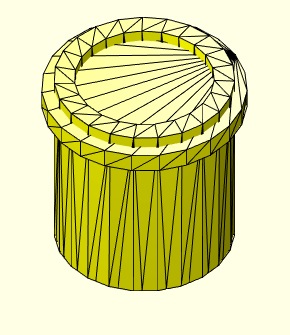

SGgrow(SG,d,thr)- returns the same solid by with increased dimensions
SGgrow(SG,d,thr) % SGgrow(SG,d,thr) - returns the same solid by with increased dimensions
% (by Tim Lueth, VLFL-Lib, 2015-AUG-03 as class: SURFACES)
%
% grows a solid by adding the vertex normal vector to the vertex
% coordinates multiplied by a factor d. ATTENTION, The MATLAB-original
% vertex normal calculation is not always correct. Therefor in this fnctn
% we used a different methods with some side effects too.
% SGgrow fnctn is perfect to analyze the correctness of Surface Solids
% (Status of: 2017-01-05)
%
% See also: SGmagnifyVL
%
% SGN=SGgrow(SG,d,[thr])
% === INPUT PARAMETERS ===
% SG: Solid Geometry
% d: grow distance
% thr: threshold for SGselect; default ist 1e-12
% === OUTPUT RESULTS ======
% SGN: resulting solid geoemtry
%

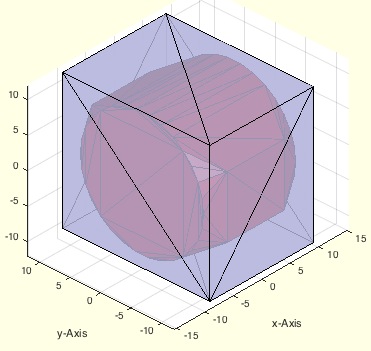

SGofBB(BB,d)- returns a solid for a bounding box
SGofBB(BB,d) % SGofBB(BB,d) - returns a solid for a bounding box
% (by Tim Lueth, VLFL-Lib, 2015-AUG-03 as class: MODELING PROCEDURES)
%
% The bounding box can be increased in all direction by an distance
% vector. d=[1 1 1] will lead to an enlargement of the bounding box by 2
% mm in the three x y z directions..
% For shape optimized cell type bounding boxes use BBofSG directly
% (Status of: 2017-04-17)
%
% See also: BBiscollofVL, BBofVL, CPLofBB, VLFLofBB, outboundingbox,
% BBofSG
%
% SG=SGofBB(BB,[d])
% === INPUT PARAMETERS ===
% BB: Result of BBofVL, i.e. [xmin xmax ymin ymax zmin zmax]
% d: enlargement in [x y z]; default is d=[1 1 1]
% === OUTPUT RESULTS ======
% SG: Solid box of size of the Bounding Box
%
% EXAMPLE:
% SG=SGofCPLz(PLcircle(10,8),40); SGfigure(SG); view(-30,30);
% SGofBB(BBofVL(SG.VL))
%
TR3ofTR4(TR4,rem)- returns the surface triangulation of a tetrahedron
TR3ofTR4(TR4,rem) % TR3ofTR4(TR4,rem) - returns the surface triangulation of a tetrahedron
% (by Tim Lueth, VLFL-Lib, 2015-AUG-02 as class: TETRAHEDRONS)
%
% Single line procedure:
% TR3=triangulation(freeBoundary(TR4),TR4.Points);
% The procedure does not (!) remove unnecessary vertices unless rem=true
% (default is false) (Status of: 2015-08-07)
%
% [TR3,VL,FL,SI]=TR3ofTR4(TR4,[rem])
% === INPUT PARAMETERS ===
% TR4: tetrahedron triangulation
% rem: remove unused (internal) vertices; default is false
% === OUTPUT RESULTS ======
% TR3: surface triangulation
% VL: Vertex list
% FL: Facet list
% SI: FL=SI(FL) => maps to TR4.Points
%
% EXAMPLE: TR4=delaunayTriangulation([0 0 0;100 0 0; 0 100 0; 25 25
% 100]);
% TR3ofTR4(TR4)
%
exp_2015_08_02- Experiment to generate tube connectors
exp_2015_08_02 %% PUBLISHABLE EXP_2015_08_02 EXPERIMENT TO GENERATE TUBE CONNECTORS
% (by Tim Lueth, VLFL-Lib, 2015-AUG-02 as class: EXPERIMENTS)

%%

% exp_2015_08_02 - Experiment to generate tube connectors
% (by Tim Lueth, VLFL-Lib, 2015-AUG-02 as class: EXPERIMENTS)
%
% exp_2015_08_02
%
depuseString(sstr)- searches for string using the system command grep
depuseString(sstr) % depuseString(sstr) - searches for string using the system command grep
% (by Tim Lueth, VLFL-Lib, 2015-AUG-01 as class: FILE HANDLING)
%
% This fnctn is much faster than depuseTL or depuse, but returns all rows
% with the occurrence of the fnctn. It is helpful to decide with the eye
% whether older fnctns have to be corrected when changing parameters.
% (Status of: 2017-01-04)
%
% See also: depuseTL, depuseToolbox, publishTL, pcodeTL, depfunTL,
% pcodedirTL
%
% [l,f]=depuseString(sstr)
% === INPUT PARAMETERS ===
% sstr: search string
% === OUTPUT RESULTS ======
% l: list of lines in the files of the current dirctory
% f: list of mfiles that contains the string
%
% EXAMPLE: Search for PLplot
% depuseString('PLplot')
%
edgeNormal(VL,VNL,EL)- returns the edge normals of surface boundaries
edgeNormal(VL,VNL,EL) % edgeNormal(VL,VNL,EL) - returns the edge normals of surface boundaries
% (by Tim Lueth, VLFL-Lib, 2015-AUG-01 as class: SURFACES)
%
% In case of a planar or freeform surface that is not closed(!) there
% exist a border line (freeBoundary). This fnctn calculates the normal
% vectors of the edge list vertices, i.e. the cross product of the line
% from the previous to the next vertex of a vertex of an edge with the
% normal vector of this vertic on the surface. (Status of: 2017-07-09)
%
% Introduced first in SolidGeometry 2.4
%
% See also: edgeNormal, CPLedgeNormal, VLedgeNormal, PLnorm, PLELnorm,
% PLFLfaceNormal, VLnorm, VLFLnormf, VLFLfaceNormal
%
% [EOL,c]=edgeNormal(VL,VNL,EL)
% === INPUT PARAMETERS ===
% VL: Vertex list (nx3)
% VNL: Vertex normal list (nx3) (i.e. vertexNormal)
% EL: Edge list (i.e. freeBoundary)
% === OUTPUT RESULTS ======
% EOL: Normal vector of the vertex in the first column of the edge list
% c: vertex index list = EL(:,1)
%
% EXAMPLE:
% TR3=triangulation(FL,VL);
% NL=vertexNormal(TR3);
% EL=freeBoundary(TR3);
% [EOL,c]=edgeNormal(VL,NL,EL);
% VL0(c,:)=VL(c,:)+s*EOL;
%
% See also: edgeNormal, CPLedgeNormal, VLedgeNormal, PLnorm, PLELnorm,
% PLFLfaceNormal, VLnorm, VLFLnormf, VLFLfaceNormal
%
ELofjointFL(FL1,FL2)- returns a list of joint edges of two facet list
ELofjointFL(FL1,FL2) % ELofjointFL(FL1,FL2) - returns a list of joint edges of two facet list
% (by Tim Lueth, VLFL-Lib, 2015-JUL-31 as class: SURFACES)
%
% efficient procedure that uses ismember to detect corresponding edges in
% facet lists. Format is:
% [start vertex index, end vertex index, FL1 index, FL2 index]
%
% used if two open sub-surfaces of a solid are linked by an border line
% (Status of: 2015-07-31)
%
% [ELiL]=ELofjointFL(FL1,FL2)
% === INPUT PARAMETERS ===
% FL1: Facet List 1
% FL2: Facet List 2
% === OUTPUT RESULTS ======
% [ELiL]: Edge list plus Facet Index in FL1 and FL2
%
separateNaN(VL,i)- separates List by NaN rows entries
separateNaN(VL,i) % separateNaN(VL,i) - separates List by NaN rows entries
% (by Tim Lueth, VLFL-Lib, 2015-JUL-31 as class: AUXILIARY PROCEDURES)
%
% n=separateNaN(VL); for i=1:n; myfunc(separateNaN(VL,i); end; (Status
% of: 2017-06-12)
%
% See also: selectNaN, replaceNaN, cellofNaN
%
% x=separateNaN(VL,i)
% === INPUT PARAMETERS ===
% VL: List of
% i: optional number of sublist
% === OUTPUT RESULTS ======
% x: List i or number of lists if nargin==1
%
% EXAMPLE: how to use
% nf=separateNaN(FL); if nf>1; for i=1:nf; PL=separateNaN(FL,i); end;

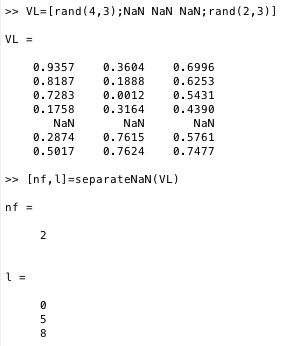

% Example:
% VL=[rand(4,3);NaN NaN NaN;rand(2,3)]
% [nf,l]=separateNaN(VL)
% separateNaN(VL,2)
%

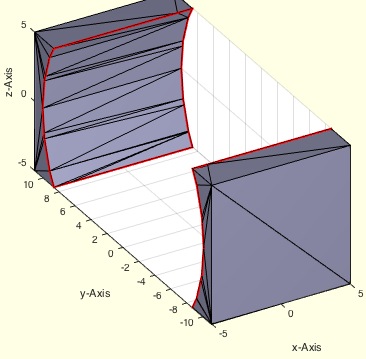

SGofSurface(OVL,OFL,t,d,s)- returns a fitting solid relativ to a surface
SGofSurface(OVL,OFL,t,d,s) % SGofSurface(OVL,OFL,t,d,s) - returns a fitting solid relativ to a surface
% (by Tim Lueth, VLFL-Lib, 2015-JUL-30 as class: SURFACES)
%
% This fnctn supports also facets list of type cell: {FL1,FL2,FL3}.
% It also supports facets list separated by NaN: [FL1;NaN NaN NaN;FL2]
% IT DOES NOT SUPPORT SURFACES WITH HOLES YET (Status of: 2017-04-17)
%
% See also: VLtransN
%
% [SG,VL1,VL2,FLW]=SGofSurface(OVL,OFL,[t,d,s])
% === INPUT PARAMETERS ===
% OVL: Vertex list of a surface (nx3)
% OFL: Facet list of a surface (nx3)
% t: thickness of the solid; default is 0.5
% d: distance from the surface; default is 0.3
% s: streching of the border line; default is 0
% === OUTPUT RESULTS ======
% SG: resulting solid that can be attached to the surface
% VL1: VL oved along d
% VL2: VL moved d*ez
% FLW: Facet of list wall [VL1;VL2]
%
exp_2015_07_28- EXPERIMENT to test SGofSurface
exp_2015_07_28 % exp_2015_07_28 - EXPERIMENT to test SGofSurface
% (by Tim Lueth, VLFL-Lib, 2015-JUL-28 as class: EXPERIMENTS)
%
% This procedure shows how from surfaces attaching solids can be generated
% (Status of: 2015-08-01)
%
% A=exp_2015_07_28
% === OUTPUT RESULTS ======
% A: resulting solid body
%
SGcopyrotZ(SG,rotangz,tdist,n)- copies a solid around the z-axis
SGcopyrotZ(SG,rotangz,tdist,n) % SGcopyrotZ(SG,rotangz,tdist,n) - copies a solid around the z-axis
% (by Tim Lueth, VLFL-Lib, 2015-JUL-27 as class: AUXILIARY PROCEDURES)
%
% See also: SGboxing, SGpatternXYZ, SGpatternRotz, SGarrangeSG,
% SGarrangeSGC, SGCaddSGn, SGCaddSG
%
% SGN=SGcopyrotZ(SG,rotangz,[tdist,n])
% === INPUT PARAMETERS ===
% SG: Solid geoemtry
% rotangz: list of rotation angles
% tdist: translation vector before each copy
% n: number of repeats
% === OUTPUT RESULTS ======
% SGN: resulting solid
%
% EXAMPLE: SGcopyrotZ(SGtrans1(SGbox([30,20,10])),[0 pi/2 pi],[25 0 10],3)
%
%

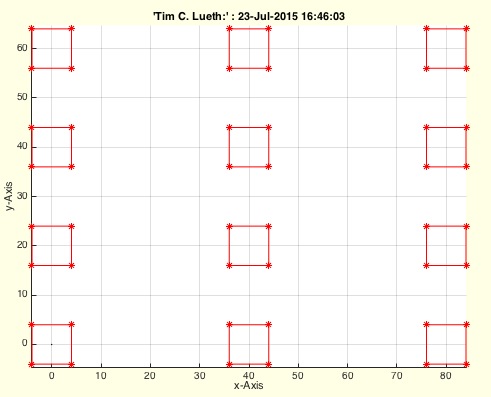

CPLcopypattern(CPL,number,delta)- creates patterns by copying CPLs
CPLcopypattern(CPL,number,delta) % CPLcopypattern(CPL,number,delta) - creates patterns by copying CPLs
% (by Tim Lueth, VLFL-Lib, 2015-JUL-23 as class: CLOSED POLYGON LISTS)
%
% CPLN=CPLcopypattern(CPL,number,delta)
% === INPUT PARAMETERS ===
% CPL: Original Polygon
% number: copy vector [nx ny]
% delta: distance vector [dx dy]
% === OUTPUT RESULTS ======
% CPLN: New closed polygon line
%
SGpatternXYZ(iSG,n,t)- copies solid geometries along xyz-axis
SGpatternXYZ(iSG,n,t) % SGpatternXYZ(iSG,n,t) - copies solid geometries along xyz-axis
% (by Laurens De Smedt, VLFL-Lib, 2015-JUL-23 as class: SURFACES)
%
% See also: SGboxing, SGpatternRotz, SGcopyrotZ, SGarrangeSG,
% SGarrangeSGC, SGCaddSGn, SGCaddSG
%
% oSG=SGpatternXYZ(iSG,n,t)
% === INPUT PARAMETERS ===
% iSG: original solid geoemtry
% n: number of copies wanted
% t: degrees(∞) over which the pattern reaches(360∞ if not specified)
% === OUTPUT RESULTS ======
% oSG: resulting solid geometries
%
SGpatternRotz(iSG,n,ndeg)- copies solid geometries around the z-axis
SGpatternRotz(iSG,n,ndeg) % SGpatternRotz(iSG,n,ndeg) - copies solid geometries around the z-axis
% (by Laurens De Smedt, VLFL-Lib, 2015-JUL-23 as class: AUXILIARY
% PROCEDURES)
%
% See also: SGboxing, SGpatternXYZ, SGcopyrotZ, SGarrangeSG,
% SGarrangeSGC, SGCaddSGn, SGCaddSG
%
% oSG=SGpatternRotz(iSG,n,ndeg)
% === INPUT PARAMETERS ===
% iSG: original solid geoemtry
% n: number of copies wanted
% ndeg: degrees(∞) over which the pattern reaches(360∞ if not specified)
% === OUTPUT RESULTS ======
% oSG: resulting solid geometries
%
SGparts(Nr,TLPAR,sl,ol)- Often used solid geometries additive designed
SGparts(Nr,TLPAR,sl,ol) % SGparts(Nr,TLPAR,sl,ol) - Often used solid geometries additive designed
% (by Tim Lueth, VLFL-Lib, 2015-JUL-16 as class: MODELING PROCEDURES)
%
% Default parameters are:
% Overlap: ol=0.1
% Slot distances: sl=0.3
% For the rest it is necessary to read the manual
% 001 - sz=[x y z] (Box)
% 002 - r=radius, h=height (Cylinder)
% (Status of: 2015-07-16)
%
% SG=SGparts(Nr,[TLPAR,sl,ol])
% === INPUT PARAMETERS ===
% Nr: Part number
% TLPAR: Parameterstring for the definition of dimensions
% sl: slot size for separated objects; default is 0.5
% ol: overlap for additive objects; default is 0.1
% === OUTPUT RESULTS ======
% SG: Final solid geometry
%
exp_2015_07_16 (varstr)- EXAMPLE for a very elegant method to transfer variable definitions
exp_2015_07_16 (varstr) % exp_2015_07_16 (varstr) - EXAMPLE for a very elegant method to transfer
% variable definitions
% (by Tim Lueth, VLFL-Lib, 2015-JUL-16 as class: AUXILIARY PROCEDURES)
%
% This is not a fast but very elegant method to declare variables by a
% parameterstrinf directly in Matlab Syntax (Status of: 2015-07-16)
%
% exp_2015_07_16(varstr)
% === INPUT PARAMETERS ===
% varstr: parameter variable string, for example (varargin{1})
%

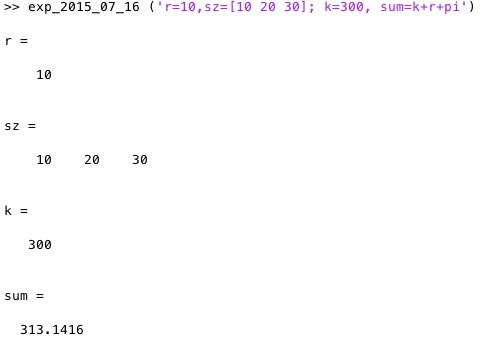

% EXAMPLE: exp_2015_07_16 ('r=10,sz=[10 20 30]; k=300, sum=k+r+pi')
%
evalTLvars (DEFPAR, TLPAR)- modifies variables of a calling function
evalTLvars (DEFPAR, TLPAR) % evalTLvars (DEFPAR, TLPAR) - modifies variables of a calling procedure
% (by Tim Lueth, VLFL-Lib, 2015-JUL-16 as class: AUXILIARY PROCEDURES)
%
% This programming auxiliary procedure creates or modifies existing
% variables in the workspace of the calling procedure by evaluating a
% string with default parameter values and an optional second string this
% is evaulated after the default value string. (Status of: 2015-07-17)
%
% evalTLvars(DEFPAR,TLPAR)
% === INPUT PARAMETERS ===
% DEFPAR: Default variable values
% TLPAR: Parameter string (varargins) to overload the default values
%
% EXAMPLE: Create variables by a string:
% evalTLvars ('a=12, b=13, c=a+b', varargin{1});
%
CAD_1_1- PUBLISHABLE EXAMPLE of Excercise CAD 1.1
CAD_1_1 % CAD_1_1 - PUBLISHABLE EXAMPLE of Excercise CAD 1.1
% (by Tim Lueth, VLFL-Lib, 2015-JUL-14 as class: MODELING PROCEDURES)
%
% This procedure is an example how to solve the excercise 1.1 of the
% "Rechnerintegrierte Produktentwicklung - CAD und CAD/CAM" (2015)
% of Professor Dr.-Ing. Udo Lindemann (Status of: 2015-07-14)
%
% CAD_1_1
%
% EXAMPLE: web(publish ('CAD_1_1'));
%
CAD_1_2- PUBLISHABLE EXAMPLE of Excercise CAD 1.2
CAD_1_2 % CAD_1_2 - PUBLISHABLE EXAMPLE of Excercise CAD 1.2
% (by Tim Lueth & Laurans de Smedt, VLFL-Lib, 2015-JUN-29 as class:
% MODELING PROCEDURES)
%
% This procedure is an example how to solve the excercise 1.2 of the
% "Rechnerintegrierte Produktentwicklung - CAD und CAD/CAM" (2015)
% of Professor Dr.-Ing. Udo Lindemann (Status of: 2015-06-29)
%
% CAD_1_2
%

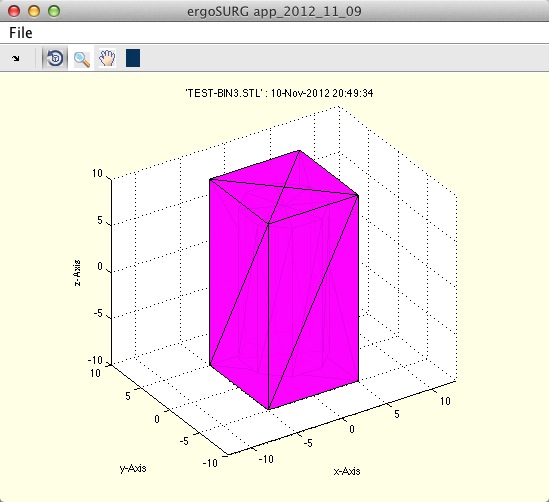

SGfigure()- Application for opening and viewing STL Files
SGfigure() % SGfigure() - Application for opening and viewing STL Files
% (by Tim Lueth, VLFL-Lib, 2015-JUN-22 as class: VISUALIZATION)
%
% The procedure can be compiled as application or used as user interface
% procedure. Called without input parameters, a file reading dialog will
% be opened. There are examples for reading, writing of STL files and
% changing light condition or grid information.
% It should show the potential of Matlab to the company Arburg, Lossburg
% (Status of: 2015-08-26)
%
% h=SGfigure([])
% === OUTPUT RESULTS ======
% h: handle to figure
%
% EXAMPLE: GUI with a small cube (0.1 0.1 0.1) in the center:
% SGfigure
%
PLtoolTip(d1,d2,w)- creates a PL fo SGtoolMilling
PLtoolTip(d1,d2,w) % PLtoolTip(d1,d2,w) - creates a PL fo SGtoolMilling
% (by Tim Lueth, VLFL-Lib, 2015-JUN-21 as class: MECHANICAL PROCEDURES)
%
% PL=PLtoolTip(d1,d2,[w])
% === INPUT PARAMETERS ===
% d1: outer diameter
% d2: tip diameter
% w: optional angle; default is 90
% === OUTPUT RESULTS ======
% PL: Point list
%

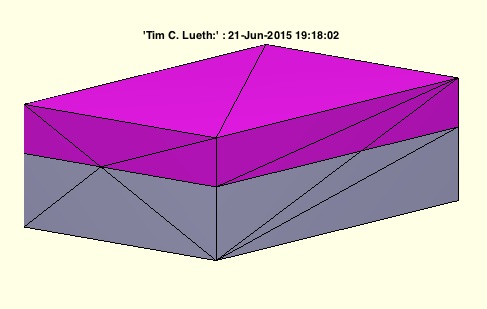

SGcut2(SG,z)- Cuts a solid geometry by inserting vertices and facets
SGcut2(SG,z) % SGcut2(SG,z) - Cuts a solid geometry by inserting vertices and facets
% (by Tim Lueth, VLFL-Lib, 2015-JUN-21 as class: SURFACES)
%
% returns one modified solid that has additional vertices and facets
% along the cutting plane. In contrast to SGcut is delivers always
% exactly one solid and accepts only one z coordinate. If the fnctns is
% called twice with the same z-coordinates, no additional points are
% created. For this purpose it was necessary to modify the fnctn
% SCslicer. (Status of: 2015-06-21)
%
% See also: SGcut
%
% [SGA]=SGcut2(SG,z)
% === INPUT PARAMETERS ===
% SG: Solid Geometry (VL,FL)
% z: z value for slicing
% === OUTPUT RESULTS ======
% [SGA]: Solid below cutting plane (and above z2)
%
% EXAMPLE: SGcut2 (SGbox([30,20,10]),1);
%
exp_2015_06_19- EXPERIMENT that is the origin of SGmilling
exp_2015_06_19 % exp_2015_06_19 - EXPERIMENT that is the origin of SGmilling
% (by Tim Lueth, VLFL-Lib, 2015-JUN-19 as class: EXPERIMENTS)
%
% A=exp_2015_06_19
% === OUTPUT RESULTS ======
% A:
%
% EXAMPLE:
% A=exp_2015_06_19;
% VLFLfigure(A)
%
VILofrangez(VL,FL,z,thr)- returns indices of VL and FL in a cut plane
VILofrangez(VL,FL,z,thr) % VILofrangez(VL,FL,z,thr) - returns indices of VL and FL in a cut plane
% (by Tim Lueth, VLFL-Lib, 2015-JUN-19 as class: SLICES)
%
% The vertex index list shows relation of the vertex z coordinate related
% to the cutting plane: +1 = above plane, -1 under plane, 0=crosses
% plane. The crossing facet list explains the crossing situation
% 0 0 0 All points in plane (1)
% -1 -1 -1 All points under plane (1)
% +1 +1 +1 All points above plane (1)
% 0 0 +1 One point above (3)
% 0 0 -1 One point under (3)
% 0 +1 +1 One point on plane, two above (3)
% 0 -1 -1 One point on plane, two under (3)
% 0 +1 -1 One point on plane, one above, one under (3)
% 0 -1 +1 One point on plane, one above, one under (3)
% -1 +1 +1 One point under, one point above (3)
% +1 -1 -1 One point under, one point above (3)
% overall 27 combinatons (Status of: 2015-06-19)
%
% [VIL,CFL]=VILofrangez(VL,FL,z,[thr])
% === INPUT PARAMETERS ===
% VL: Vertex list
% FL: Facet list
% z: cut coordinate
% thr: optional grid; default is 1e-5
% === OUTPUT RESULTS ======
% VIL: +1 = above plane, -1 under plane, 0=crosses plane
% CFL: Crossing Facet List
%

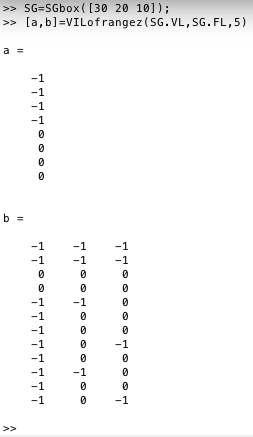

% EXAMPLE: SG=SGbox([30 20 10]);
% [a,b]=VILofrangez(SG.VL,SG.FL,5)
%
SGtoolMilling(A,PL)- returns a solid geometry resulting by a milling process
SGtoolMilling(A,PL) % SGtoolMilling(A,PL) - returns a solid geometry resulting by a milling
% process
% (by Tim Lueth, VLFL-Lib, 2015-JUN-16 as class: SURFACES)
%
% SG=SGtoolMilling(A,PL)
% === INPUT PARAMETERS ===
% A: Solid Geometry
% PL: rz-List milling contour (nx2)
% === OUTPUT RESULTS ======
% SG: resulting solid
%
% EXAMPLE:
% A=SGthread(10,30)
% SGtoolMilling(A,PLtoolTip(10,8))
%
SGtoolTip (d1,d2,w)- returns a SG for a "tool" for SGbool
SGtoolTip (d1,d2,w) % SGtoolTip (d1,d2,w) - returns a SG for a "tool" for SGbool
% (by Tim Lueth, VLFL-Lib, 2015-JUN-16 as class: EXPERIMENTS)
%
% Many DIN and ISO standards for machine elements expect a point tip
% shape at the end of a screw. This SGtool can be used as negtive form
% for shaping a tip of a bolt or screw etc. (Status of: 2015-06-16)
%
% SGtoolTip(d1,d2,[w])
% === INPUT PARAMETERS ===
% d1: outer diameter
% d2: tip diameter
% w: optional angle; default is 90 degree
%
exp_2015_06_16 (d1,d2,w)- EXPERIMENT to create a SGBool-Tool for point tips of screws
exp_2015_06_16 (d1,d2,w) % exp_2015_06_16 (d1,d2,w) - EXPERIMENT to create a SGBool-Tool for point
% tips of screws
% (by Tim Lueth, VLFL-Lib, 2015-JUN-16 as class: EXPERIMENTS)
%
% exp_2015_06_16(d1,d2,[w])
% === INPUT PARAMETERS ===
% d1: outer diameter
% d2: tip diameter
% w: optional angle; default is 90 degree
%

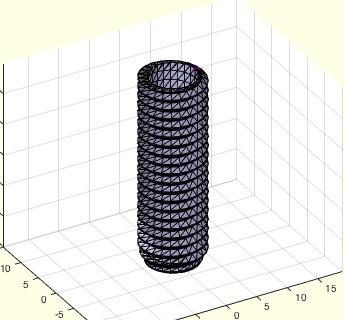

SGiso4026(M,L,imb)- SG of Hexagon socket set screw with flat point
SGiso4026(M,L,imb) % SGiso4026(M,L,imb) - SG of Hexagon socket set screw with flat point
% (by Tim Lueth, VLFL-Lib, 2015-JUN-15 as class: MECHANICAL PROCEDURES)
%
% returns a solid geometry of a "Hexagon socket set screw with flat
% point" related to DIN913 or ISO4026 (Status of: 2017-01-29)
%
% See also: DINhelp, DIN913, DIN912, DIN336, SGiso4762
%
% SG=SGiso4026(M,L,[imb])
% === INPUT PARAMETERS ===
% M: Diameter (millimeter)
% L: Length (millimeter)
% imb: true=imbus; false=simple screw
% === OUTPUT RESULTS ======
% SG: Solid geoemetry of Hexagon socket set screw with flat point
%
DIN913(M)- returns the DIN913/ISO4026 table for a metric threads
DIN913(M) % DIN913(M) - returns the DIN913/ISO4026 table for a metric threads
% (by Tim Lueth, VLFL-Lib, 2015-JUN-15 as class: MECHANICAL PROCEDURES)
%
% The table DIN913/ISO4026 has the following columns. All values are
% given in millimeter
% 1) Metric outer diameter in mm
% 2) Imbus width
% 3) Tip diameter
% 4) unknown
% 5) Depth of imbus (Status of: 2017-01-29)
%
% See also: DINhelp, SGiso4026, DIN912, DIN336, SGiso4762
%
% [M,TL]=DIN913(M)
% === INPUT PARAMETERS ===
% M: metric treat diameter
% === OUTPUT RESULTS ======
% M: M that was used for the table entry
% TL: Table entry for M
%
DINhelp- open different urls for DIN and ISO Standard Machine Elements
DINhelp % DINhelp - open different urls for DIN and ISO Standard Machine Elements
% (by Tim Lueth, VLFL-Lib, 2015-JUN-15 as class: MECHANICAL PROCEDURES)
%
% The German company Wegertseder offeres summaries of DIN/ISO standards
% for fixation elements (Status of: 2017-01-29)
%
% See also: DINhelp, DIN913, SGiso4026, DIN912, DIN336, SGiso4762
%
% DINhelp
%
% EXAMPLE: just enter DINhelp for opening the pae
%
interPL(PL,x)- returns a value as linear interpolation using a PL
interPL(PL,x) % interPL(PL,x) - returns a value as linear interpolation using a PL
% (by Tim Lueth, VLFL-Lib, 2015-JUN-15 as class: AUXILIARY PROCEDURES)
%
% Returns a linear interpolation value y using a Point list (nx2)
% consisting of x and y values. If the input parameter is outside of the
% defined interval the procedure return NaN. At a later stage it makes
% sense to introduce a third parameter for different interpolation
% procedures (splines etc.).
% ATTENTION: The point list has to be sorted using PL=sortrows(PL,1)
% before calling the procedure. (Status of: 2015-06-19)
%
% y=interPL(PL,x)
% === INPUT PARAMETERS ===
% PL: Point list (nx2) using x and y values
% x: input value within the interval of xmin and xmax of PL
% === OUTPUT RESULTS ======
% y: interpolated value for y or NaN outside of xmin and xmax of PL
%
% EXAMPLE: find interpolation values for a simple point list for x=13
% interPL([10 10; 12 2; 14 12],13)
%
